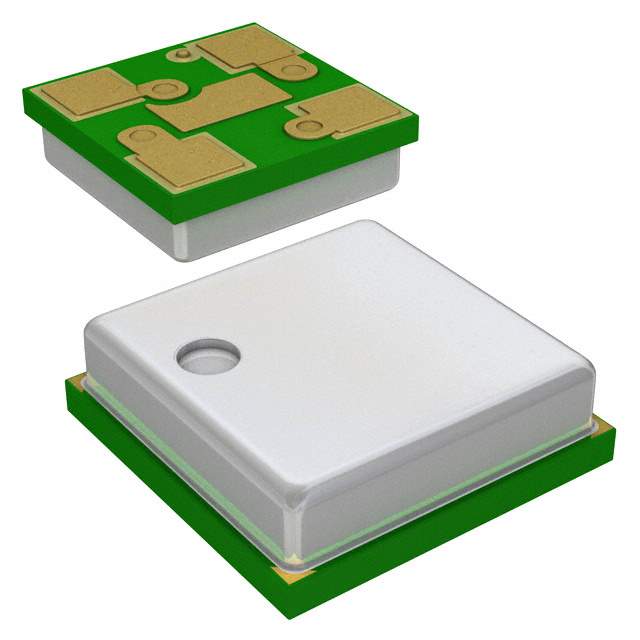

MS563702BA03-50 Real Image
Same model may have multiple batches, images only for reference.

MS563702BA03-50

Part No MS563702BA03-50
Manufacturer TE Connectivity
Catalog Pressure Sensors, Transducers
Description SENSOR 17.4PSIA I2C 24B 4-QFN / Low Voltage Barometric Pressure Sensor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity Measurement Specialties
Packaging Reel
Applications Board Mount
Pressure Type Absolute
Operating Pressure 4.35PSI ~ 17.4PSI (30kPa ~ 120kPa)
Output Type I2C
Output 24 b
Accuracy ±0.058PSI (±0.4kPa)
Supply Voltage (V) 1.5V ~ 3.6V
Port Style No Port
Termination Style SMD (SMT) Tab
Maximum Pressure 87.02PSI (600kPa)
Temperature Range - Operating -40°C ~ 85°C
Manufacturer Package 4-SMD, No Lead Exposed Pad
Supplier Device Package 4-SMD
Manufacturer Pack Quantity 3,600
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804964-MS563702BA03-50
Ultra Librarian 3D Model Ultra Librarian MS563702BA03-50 CAD Model

Description

The TE Connectivity Measurement Specialties MS563702BA03-50 is a high-quality component that is suitable for use in various electronic applications.

  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Packaging: Reel
  • Termination Style: SMD (SMT) Tab
  • Operating Temperature Range: -40°C to 85°C
  • Supply Voltage: 1.5V to 3.6V
  • Maximum Pressure: 87.02PSI (600kPa)
  • Accuracy: ±0.058PSI (±0.4kPa)
