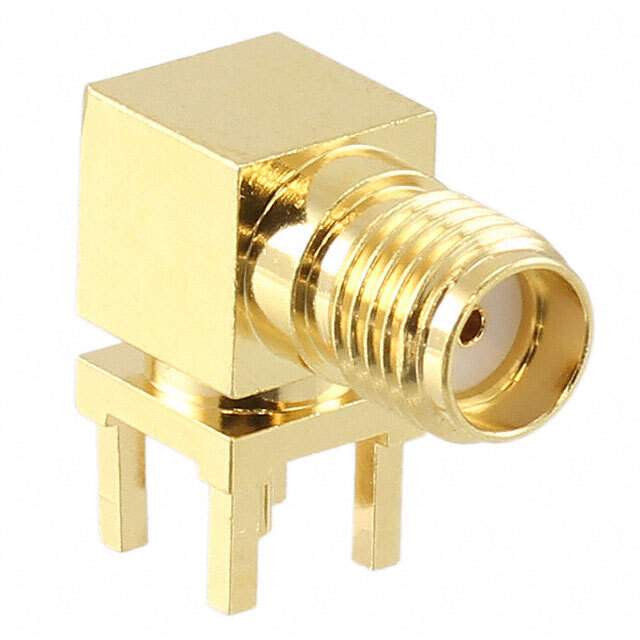

5-1814400-2 Real Image
Same model may have multiple batches, images only for reference.

5-1814400-2

Part No 5-1814400-2
Manufacturer TE Connectivity
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN SMA JACK R/A 50 OHM PCB / SMA Connector Jack, Female Socket Through Hole, Right Angle Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr TE Connectivity AMP Connectors
Package Tape & Reel (TR) Cut Tape (CT)
Connector Style SMA
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Mounting Type Through Hole, Right Angle
Fastening Type Threaded
Number of Ports 1
Housing Color Gold
Center Contact Material Beryllium Copper
Body Material Zinc Alloy
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Base Product Number 1814400
Standard Package 350
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1349174-5-1814400-2
Ultra Librarian 3D Model Ultra Librarian 5-1814400-2 CAD Model

Description

The TE Connectivity AMP Connectors 1814400-2 is a coaxial connector assembly used in various applications.

  • Connector Type: Jack, female socket
  • Fastening Type: Threaded
  • Package: Tape and reel cut tape
  • Standard Package: 350
  • Mounting Type: Through hole, right angle
  • Body Material: Zinc alloy
  • REACH: Affected
  • HTSUS: 8536.69.4010
  • Base Product Number: 1814400
