Same model may have multiple batches, images only for reference.

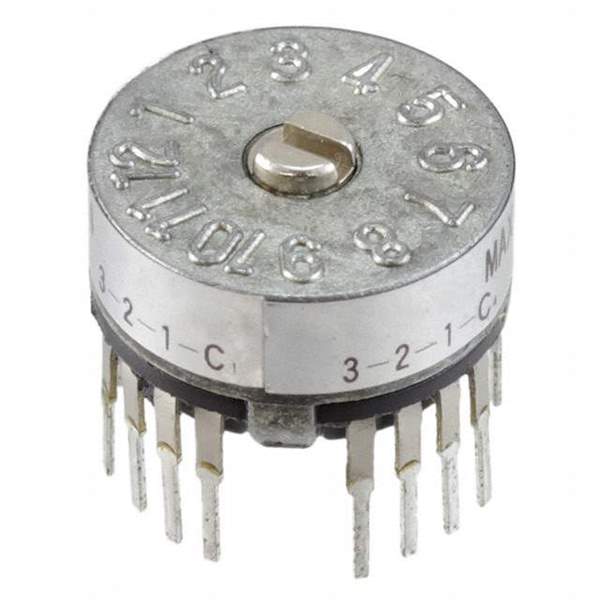

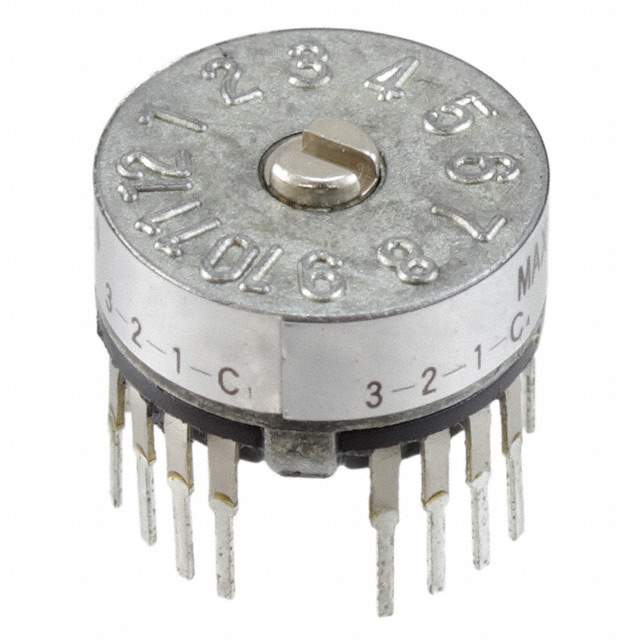

MRJB4304 Real Image
Same model may have multiple batches, images only for reference.

MRJB4304

Part No MRJB4304
Manufacturer TE Connectivity
Catalog Rotary Switches
Description SWITCH ROTARY 3POS 0.4VA 20V / Rotary Switch 3 Position 4P3T 0.4VA (AC/DC) 20 VAC Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rotary Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series MRJ
Package Tray
Product Status Obsolete
Number of Positions 3
Index Stops Fixed
Number of Decks 1
Number of Poles per Deck 4
Circuit per Deck 4P3T
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Screwdriver Slot
Actuator Length 1.02mm
Angle of Throw 30°
Contact Material Nickel
Contact Finish Gold
Mounting Type Through Hole
Termination Style PC Pin
Features Epoxy Sealed Terminals
Depth Behind Panel 7.62mm
Base Product Number MRJB
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9020
Other Names 450-1851,1825536-4-ND,-MRJB4304-SI,1825536-4
Standard Package 25
Win Source Part Number 1112555-MRJB4304
Ultra Librarian 3D Model Ultra Librarian MRJB4304 CAD Model

Description

The TE Connectivity ALCOSWITCH Switches MRJB4304 is a rotary switch with three positions.

  • Contact Timing: Non-Shorting
  • Actuator Type: Screwdriver Slot
  • Number of Poles per Deck: 4
  • Circuit per Deck: 4P3T
  • Angle of Throw: 30 Degrees
  • Depth Behind the Panel: 7.62mm
