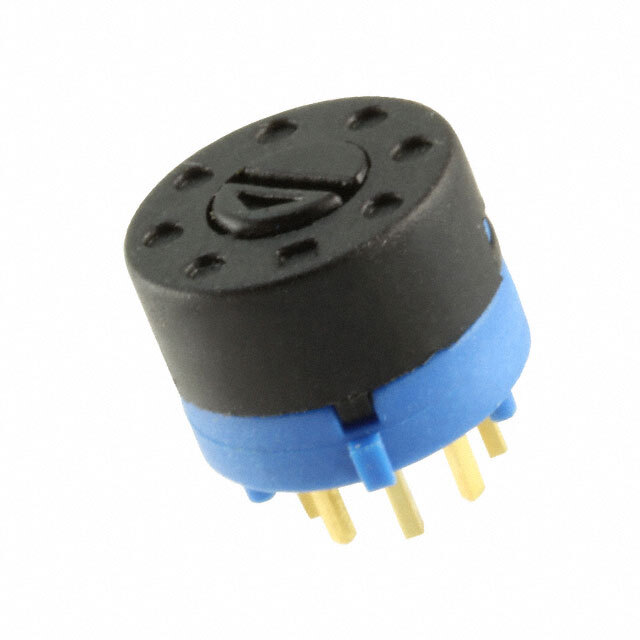

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer C&K
Series RM
Packaging Tray
Number of Positions 2
Index Stops Fixed
Number of Decks 1
Number of Poles per Deck 1
Circuit per Deck SPST
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 500mA (DC)
Voltage Rating - DC 24 V
Actuator Type Screwdriver Slot
Actuator Length Flush
Angle of Throw 45°
Contact Material Brass
Contact Finish Gold
Mounting Type Through Hole
Termination Style PC Pin
Depth Behind Panel 7.37mm
Base Product Number RM101
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9020
Win Source Part Number 1481752-RM101002BCB
Ultra Librarian 3D Model Ultra Librarian RM101002BCB CAD Model
