Same model may have multiple batches, images only for reference.

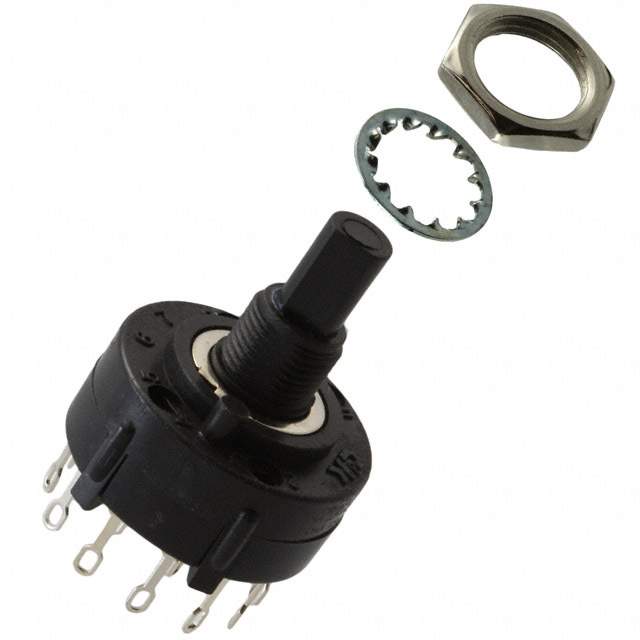

A30403RNZQ Real Image
Same model may have multiple batches, images only for reference.

A30403RNZQ

Part No A30403RNZQ
Manufacturer C&K Components
Catalog Rotary Switches
Description SWITCH ROTARY 4POS 2.5A 125V / Rotary Switch 4 Position 3P4T 2.5A (AC), 350mA (DC) 125 VAC Panel Mount
Datasheet
A30403RNZQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rotary Switches
Mfr C&K
Series A
Package Tray
Number of Positions 4
Index Stops Fixed
Number of Decks 1
Number of Poles per Deck 3
Circuit per Deck 3P4T
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 2.5A (AC), 350mA (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Actuator Type Flatted (6.35mm Dia)
Actuator Length 9.53mm
Angle of Throw 30°
Contact Material Silver (Ag)
Contact Finish Silver
Mounting Type Panel Mount
Termination Style Solder Lug
Depth Behind Panel 20.83mm
Panel Cutout Dimensions Circular - 9.80mm Dia
Base Product Number A30403RN
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9020
Other Names *A30403RNZQ,CKN6043,A30403RNZQ-ND
Standard Package 36
Win Source Part Number 1042119-A30403RNZQ
Ultra Librarian 3D Model Ultra Librarian A30403RNZQ CAD Model

Description

The C&K A30403RNZQ is a rotary switch with four positions and a circuit per deck of 3P4T.

  • Positions: Four
  • Circuit per Deck: 3P4T
  • Actuator Type: Flatted (6.35mm Dia)
  • Actuator Length: 9.53mm
  • Contact Timing: Non-shorting (BBM)
  • Stop: Fixed index
  • Voltage Rating: 125 V AC/DC
  • Current Rating: 2.5A (AC) and 350mA (DC)
  • Panel Cutout Dimension: Circular - 9.80mm Dia
  • Standard Package: 36
  • RoHS Compliant: Yes
  • ECCN: EAR99
