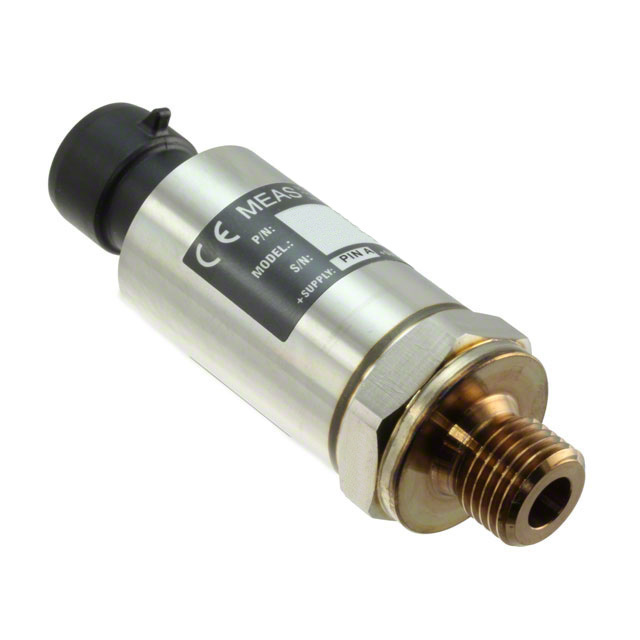

Same model may have multiple batches, images only for reference.
M5254-000005-01KPG TE Connectivity – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

M5254-000005-01KPG

Part No M5254-000005-01KPG
Manufacturer TE Connectivity
Catalog Pressure Sensors, Transducers
Description TRANSDUCER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Applications Industrial Automation
Pressure Type Vented Gauge
Operating Pressure 1000PSI (6894.76kPa)
Output Type Analog Current
Output 4 mA ~ 20 mA
Accuracy ±0.25%
Voltage - Supply 9V ~ 30V
Port Size Male - 1/4" (6.35mm) NPT
Port Style Threaded
Features Temperature Compensated
Termination Style Connector
Maximum Pressure 2000PSI (13789.51kPa)
Temperature Range - Operating -40°C ~ 125°C
Case / Package Cylinder
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1600480-M5254-000005-01KPG
Ultra Librarian 3D Model Ultra Librarian M5254-000005-01KPG CAD Model
