Same model may have multiple batches, images only for reference.

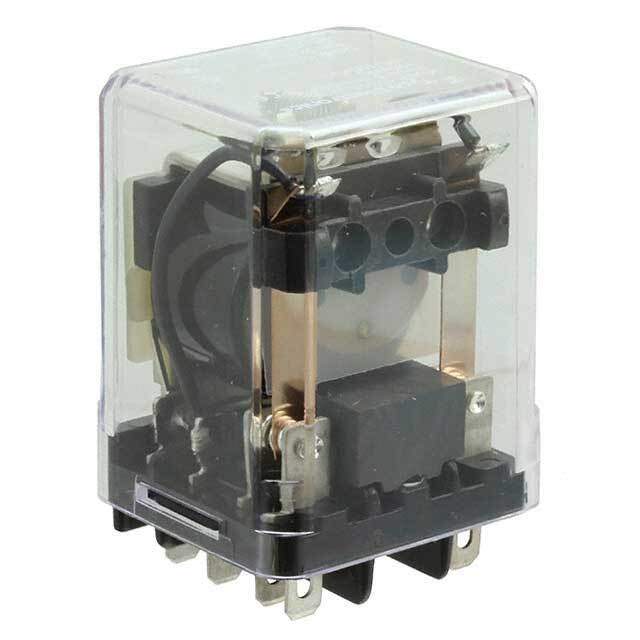

KUEP-11D15-125 Real Image
Same model may have multiple batches, images only for reference.

KUEP-11D15-125

Part No KUEP-11D15-125
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 10A 125V / General Purpose Relay DPDT (2 Form C) 125VDC Coil Socketable
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series KUEP
Package Tray
Mounting Type Socketable
Coil Voltage 125VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 10 A
Switching Voltage 150VDC - Max
Coil Current 16 mA
Coil Type Non Latching
Termination Style Plug In, Quick Connect - 0.187" (4.7mm)
Coil Insulation Class B
Must Operate Voltage 93.75 VDC
Operate Time 15 ms
Release Time 10 ms
Temperature Range - Operating -45°C ~ 70°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 8.68 kOhms
Base Product Number KUEP-11
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.49.0050
Other Names KUEP-11D15-125-ND,4-2027183-3,KUEP11D15125,PB2090
Standard Package 25
Win Source Part Number 1206815-KUEP-11D15-125
Ultra Librarian 3D Model Ultra Librarian KUEP-11D15-125 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays electronic component is a general-purpose relay with a DPDT contact form.

  • Supply and Demand Status: limited
  • Alternative Part Cross-Reference: 4-2027183-3
  • Coil Voltage: 125VDC
  • Contact Rating: 10A
