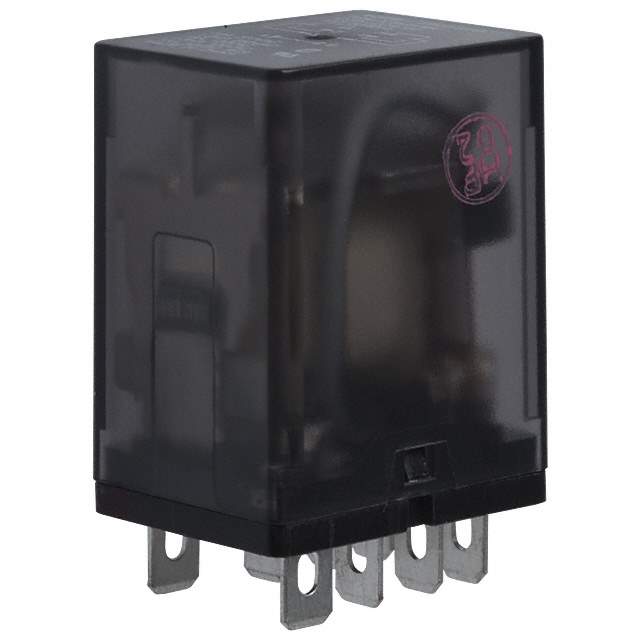

K10P-11D15-24 Real Image
Same model may have multiple batches, images only for reference.

K10P-11D15-24

Part No K10P-11D15-24
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 15A 24V / General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series K10
Package Tray
Mounting Type Socketable
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 15 A
Switching Voltage 120VAC - Max
Coil Current 37 mA
Coil Type Non Latching
Termination Style Plug In, Quick Connect - 0.187" (4.7mm)
Coil Insulation Class B
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 13 ms
Release Time 10 ms
Temperature Range - Operating -45°C ~ 70°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 650 Ohms
Base Product Number K10P
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.41.0050
Other Names K10P11D1524,PB325,PB325-NDR,5-1393144-7
Standard Package 25
Win Source Part Number 966705-K10P-11D15-24
Ultra Librarian 3D Model Ultra Librarian K10P-11D15-24 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays K10 series power relay is a reliable choice for those looking for a quality relay.

  • Manufacturer: TE Connectivity Potter & Brumfield Relays
  • Series: K10
  • Contact Form: DPDT
  • Coil Voltage: 24VDC
  • Coil Resistance: 650 Ohms
  • Coil Current: 37mA
  • Relay Type: General Purpose
  • Contact Rating: 15A
  • Temperature Range: -45°C to 70°C
