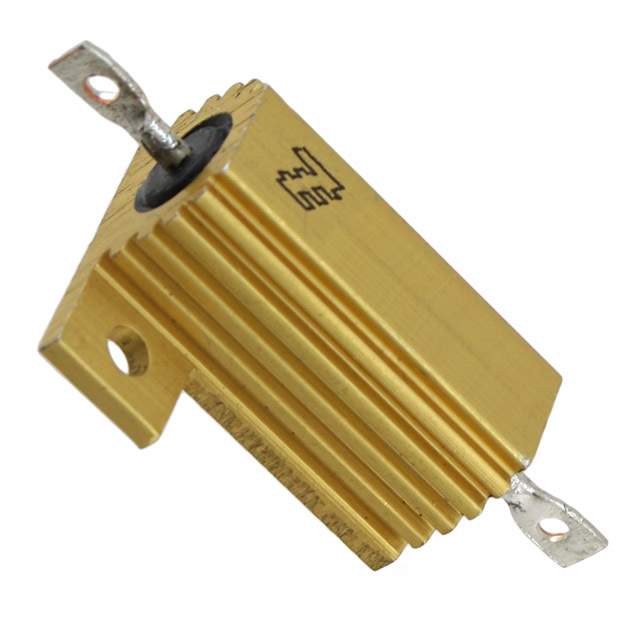

HSA25220RJ Real Image
Same model may have multiple batches, images only for reference.

HSA25220RJ

Part No HSA25220RJ
Manufacturer TE Connectivity
Catalog Chassis Mount Resistors
Description RES CHAS MNT 220 OHM 5% 25W / Res Wirewound 220 Ohm 5% 25W ±30ppm/°C Aluminum Housed AXL Chassis Mount Loose/Tray
Datasheet
HSA25220RJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer TE Connectivity Passive Product
Series HS, CGS
Packaging Bulk
Resistance (Ohms) 220
Tolerance ±5%
Power (Watts) 25W
Composition Wirewound
Temperature Coefficient ±30ppm/°C
Operating Temperature Range -55°C ~ 200°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Dimension 1.142" L x 1.102" W (29.00mm x 28.00mm)
Height - Seated (Maximum) 0.591" (15.00mm)
Lead Style Solder Lugs
Package Axial, Box
Win Source Part Number 776198-HSA25220RJ
Popularity Medium
Supply and Demand Status Limited
Family Name HS
Introduction Date March 17, 2008
ECCN EAR99
Country of Origin Czech Republic, India
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian HSA25220RJ CAD Model

Description

The TE Connectivity Passive Product 776198-HSA25220RJ is a 25W wirewound resistor with a resistance of 220 ohms.

  • Resistance: 220 ohms
  • Tolerance: ±5%
  • Temperature Coefficient: ±30ppm/°C
  • Operating Temperature: -55°C to 200°C
  • Package: Axial, Box
  • Mounting: Flanges
  • Family: HS
  • Coating: Aluminum
  • Dimensions: 1.142" L x 1.102" W (29.00mm x 28.00mm), 0.591" H (15.00mm) seated
  • Also known as: RH25220R0JS03, RH25N220R0JS03, WH25-220RJI, RH025220R0JC02
  • Supply and Demand Status: Limited
  • Halogen-Free: Yes
  • Estimated EOL Date: 2028
