VS-KBPC102 Vishay

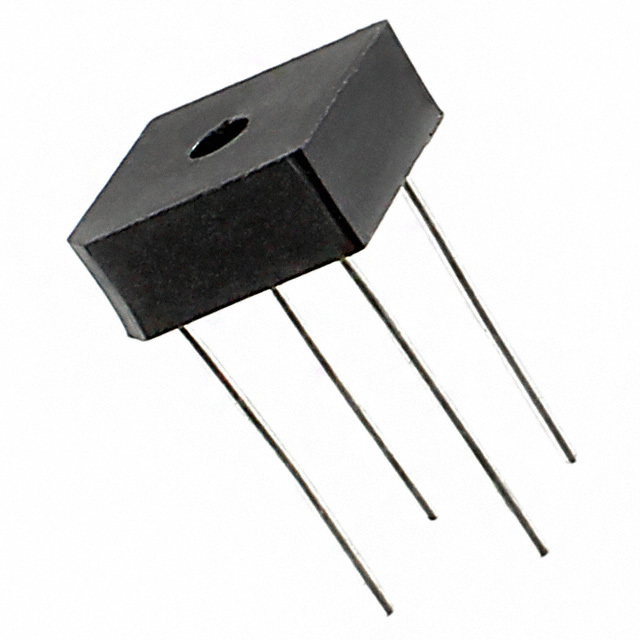

Same model may have multiple batches, images only for reference.

VS-KBPC102

Part No VS-KBPC102
Manufacturer Vishay
Catalog Bridge Rectifiers
Description BRIDGE RECTIFIER 200V 3A D46 / Diode Rectifier Bridge Single 200V 3A 4-Pin D-72
Datasheet
VS-KBPC102 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 200V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Maximum) @ If 1.1V @ 1.5A
Current - Reverse Leakage @ Vr 10μA @ 200V
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-Square, KBPC-1
Manufacturer Package KBPC1
Win Source Part Number 777972-VS-KBPC102
Popularity Medium
Supply and Demand Status Limited
Family Name VS-KBPC102
ECCN EAR99
Estimated EOL Date 2033
Ultra Librarian 3D Model Ultra Librarian VS-KBPC102 CAD Model

Description

The Vishay Semiconductor Diodes Division VS-KBPC102 is a single-phase standard diode. The specifications are as follows:

  • Current Rating: 3A
  • Reverse Leakage Current: 10μA @ 200V
  • Peak Reverse Voltage: 200V
  • Maximum Forward Voltage: 1.1V @ 1.5A
  • Mounting Style: Through-hole
  • Package: KBPC-1
  • Operating Temperature Range: -40°C to 150°C (TJ)
  • Category: Discrete Semiconductor Products
  • Estimated EOL Date: 2033
  • Supply and Demand Status: Limited
