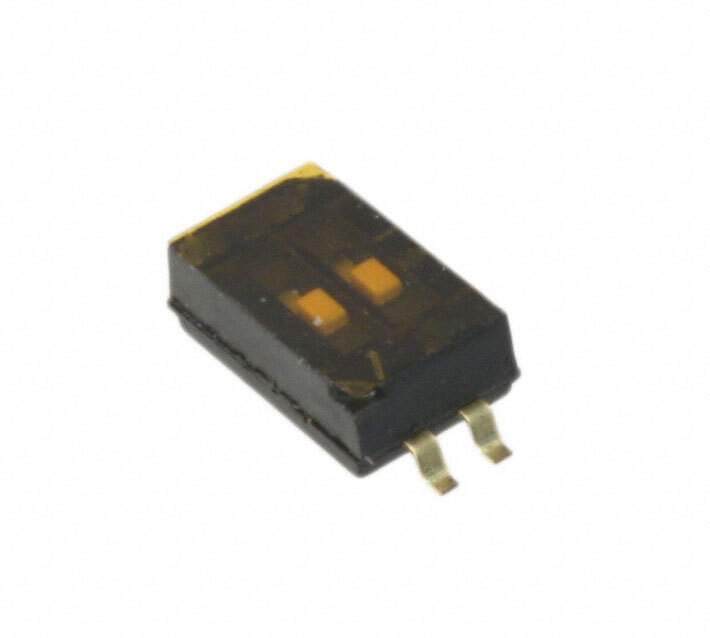

TDA02H0SB1R Real Image
Same model may have multiple batches, images only for reference.

TDA02H0SB1R

Part No TDA02H0SB1R
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V
Datasheet
TDA02H0SB1R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer C&K
Packaging Reel - TR
Status Active
Circuit SPST
Number of Positions 2
Current Rating 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Finish Gold
Height Above Board 0.091" (2.30mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable Yes
Features Tape Seal
Body Material Polyphenylene Sulfide (PPS)
Length 0.144" (3.67mm)
Temperature Range - Operating -40°C to 85°C
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Win Source Part Number 1106477-TDA02H0SB1R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TDA02H0SB1R CAD Model

Description

The C&K TDA02H0SB1R is a SPST slide switch that is designed for use in various applications.

  • Mounting: Surface Mountable
  • Positions: 2
  • Pitch: 0.050" (1.27mm), Half
  • Termination: Gull Wing
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Washable: Yes
  • Actuator Level: Flush, Recessed
  • Mechanical Life: 1,000 Cycles
  • Electrical Life: 1,000 Cycles
  • Temperature Range: -40°C to 85°C
  • Status: Active
  • Supply and Demand: Balanced
  • Popularity: Medium
