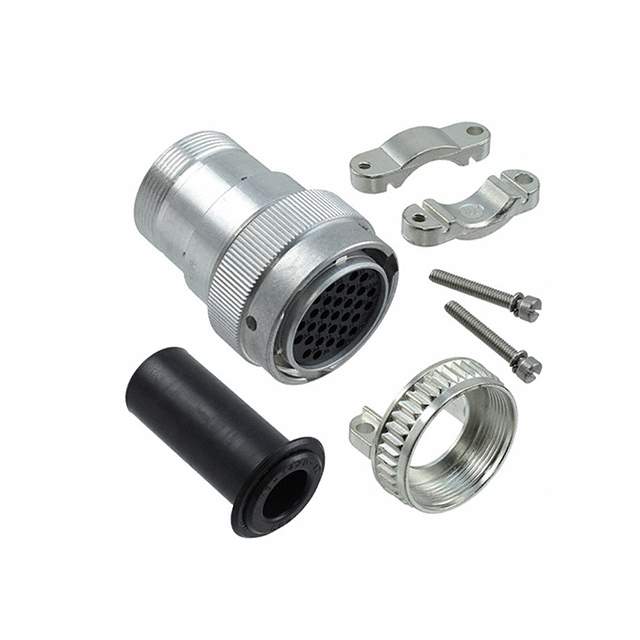

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Housings
Mfr TE Connectivity Deutsch Connectors
Series HD30
Package Bulk
Connector Type Plug Housing
Type For Female Sockets
Number of Positions 31
Shell Size - Insert 24-31
Contact Type Crimp
Contact Size 16
Mounting Type Free Hanging (In-Line)
Fastening Type Bayonet Lock
Orientation Keyed
Shell Material Aluminum
Housing Color Silver
Ingress Protection IP67 - Dust Tight, Waterproof
Features Backshell, Cable Clamp
Shielding Unshielded
Note Contacts Not Included
Insert Material Polyetherimide (PEI)
Contact Shape Circular
Temperature Range - Operating -55°C ~ 125°C
Base Product Number HD36
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Other Names 1734-1490,HD36-24-31SE-059-ND,-HD36-24-31SE-059-SI
Standard Package 100
Win Source Part Number 1054763-HD36-24-31SE-059
Ultra Librarian 3D Model Ultra Librarian HD36-24-31SE-059 CAD Model

Description

This HD30 series plug housing connector is designed for female sockets and has 31 positions.

  • Fastening Type: It features a bayonet lock fastening type and is made of aluminum shell material with silver housing color.
  • Ingress Protection: The connector is dust tight and waterproof with ingress protection rating of IP67.
  • Contact Type: The contact type is crimp with contact size of 16, and it comes with a backshell and cable clamp.
  • Operating Temperature: The operating temperature range is from -55°C to 125°C.
  • Package: The package is bulk and includes the shell size insert of 24-31.
  • Mounting Type: The connector is free hanging (in-line) mounting type and has no contacts included.
  • Application: The connector is commonly used in circular connectors - housings.
