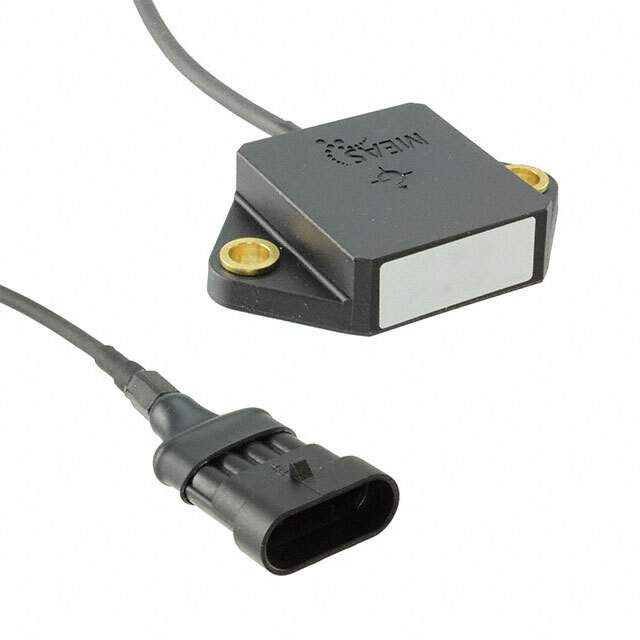

The G-NSDOG2-200 is an inclinometer manufactured by TE Connectivity, designed to measure the angle of tilt with respect to gravity. It provides accurate and reliable inclination data, making it suitable for a wide range of applications where precise angle measurement is critical.

Applications:

• Construction Equipment: Used in leveling systems for bulldozers, excavators, and other heavy machinery.
• Agricultural Machinery: Integrated into precision farming equipment for accurate terrain mapping and implement control.
• Robotics: Provides feedback on robot arm position and orientation for precise movements.
• Platform Leveling: Used in stabilizing platforms in marine and aerospace applications.
• Solar Tracking Systems: Provides accurate tilt angle for optimal solar energy capture.

Features:

• High Accuracy: Provides precise inclination measurements for reliable performance.
• Robust Design: Designed to withstand harsh environmental conditions, including shock, vibration, and temperature variations.
• Analog Output: Provides an analog voltage or current output proportional to the measured inclination angle.
• Compact Size: Allows for easy integration into space-constrained applications.
• Wide Operating Temperature Range: Operates reliably over a wide range of temperatures.

Benefits:

• Improved Accuracy: Enables precise control and monitoring in various applications.
• Increased Reliability: Provides consistent performance in demanding environments.
• Reduced Downtime: Minimizes maintenance and repair costs due to its robust construction.
• Simplified Integration: Easy to integrate into existing systems due to its compact size and analog output.
• Enhanced Safety: Improves safety by providing accurate feedback on tilt angles.

Additional Details:

The G-NSDOG2-200 inclinometer typically operates on a supply voltage of 5VDC. It offers a measurement range of ±200 degrees. The output signal is often an analog voltage, typically ranging from 0.5V to 4.5V, proportional to the inclination angle. The sensor is designed to be highly resistant to shock and vibration, ensuring reliable performance in dynamic environments. Its compact size and robust design make it a versatile solution for various industrial and commercial applications.
