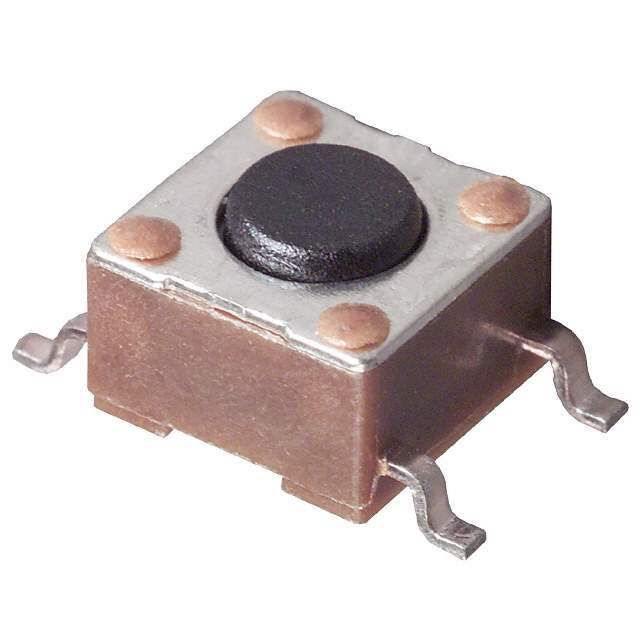

FSM2JSMA Real Image
Same model may have multiple batches, images only for reference.

FSM2JSMA

Part No FSM2JSMA
Manufacturer TE Connectivity
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 24V  /  Tactile Switch SPST-NO Top Actuated Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series FSMJSMA
Package Bulk
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Standard
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 4.30mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 6.00mm x 6.00mm
Illumination Non-Illuminated
Operating Force 160gf
Temperature Range - Operating -35°C ~ 85°C
Actuator Material Polyphenylene Sulfide (PPS)
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Base Product Number FSM2
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1315007-FSM2JSMA
Ultra Librarian 3D Model Ultra Librarian FSM2JSMA CAD Model

Description

The TE Connectivity ALCOSWITCH Switches FSMJSMA series is a tactile switch designed for various applications.

  • Termination Style: Gull-Wing
  • Actuator Material: Polyphenylene Sulfide (PPS)
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Standard
  • Switch Travel: 0.25mm
  • Operating Force: 160gf
  • Mechanical Life: 100,000 cycles
  • Operating Temperature Range: -35°C to 85°C
  • Illumination: Non-Illuminated
  • Outline: 6.00mm x 6.00mm
