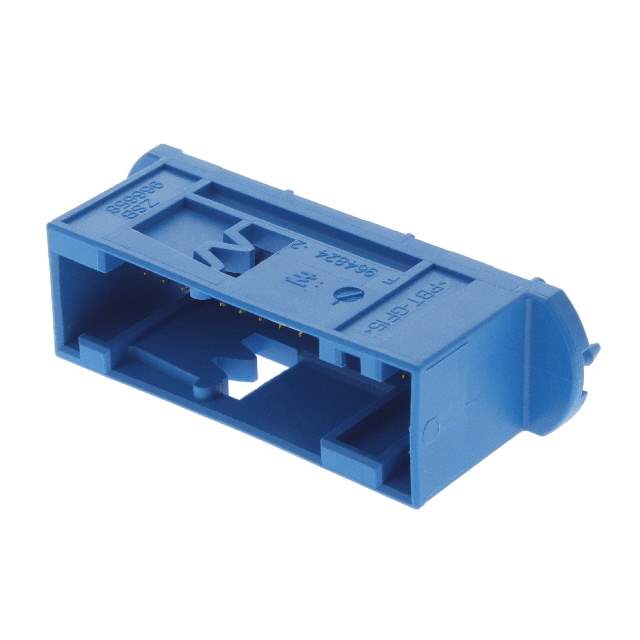

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series AMPMODU Mod II
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 32
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.268" (6.80mm)
Contact Length - Post 0.098" (2.50mm)
Overall Contact Length 0.520" (13.21mm)
Insulation Height 0.795" (20.20mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 78.7µin (2.00µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Board Lock
Temperature Range - Operating -40°C ~ 110°C
Insulation Color Blue
Voltage Rating 12V
Applications Automotive
Base Product Number 966658
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names -966658-2-CSI,2266-966658-2,-966658-2-LSI,A129217,-966658-2-SI,966658-2-ND
Standard Package 288
Win Source Part Number 972704-966658-2
Ultra Librarian 3D Model Ultra Librarian 966658-2 CAD Model

Description

The TE Connectivity AMP Connectors AMPMODU Mod II is a rectangular connector that comes with 32 positions and a board lock feature. It is a male pin header connector with all positions loaded and 2 rows.

  • Product Name: AMPMODU Mod II
  • Manufacturer: TE Connectivity AMP Connectors
  • Connector Type: Rectangular Connector
  • Positions: 32
  • Board Lock: Yes
  • Gender: Male Pin Header
  • Positions Loaded: All
  • Rows: 2
  • Termination: Solder
  • Fastening Type: Latch Holder
  • Package: Tray
  • Contact Material: Brass
  • Voltage Rating: 12V
  • Application: Automotive
  • Insulation Material: Polybutylene Terephthalate (PBT), Glass-Filled
  • Shrouded: 4 Walls
  • Pitch-Mating: 0.100" (2.54mm)
  • Contact Finish-Mating: Tin, 78.7µin (2.00µm)
  • Contact Finish-Post: Tin
  • Insulation Color: Blue
  • Mounting Type: Through-Hole
  • Row Spacing-Mating: 0.100" (2.54mm)
  • Contact Length-Post: 0.098" (2.50mm)
  • Overall Contact Length: 0.520" (13.21mm)
  • Insulation Height: 0.795" (20.20mm)
  • Contact Shape: Square
  • Operating Temperature Range: -40°C to 110°C
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
