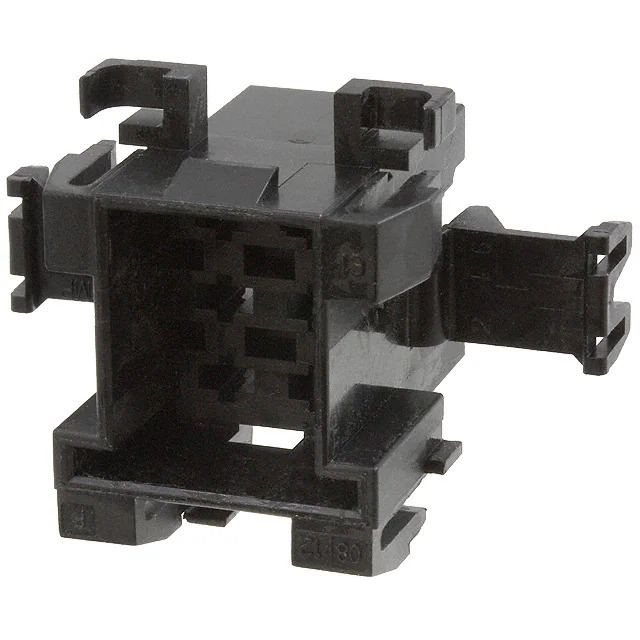

Same model may have multiple batches, images only for reference.

929505-2

Get a Quote

Part No	929505-2
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN PLUG HSG 6POS 5.00MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr	TE Connectivity AMP Connectors
Series	Junior Power Timer
Package	Bulk
Product Status	Active
Connector Type	Plug
Contact Type	Tab
Number of Positions	6
Pitch	0.197" (5.00mm)
Number of Rows	2
Row Spacing	0.220" (5.60mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Locking Ramp
Color	Black
Features	-
Note	Contacts Not Included
Base Product Number	929505
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.8000
Win Source Part Number	1365869-929505-2
Ultra Librarian 3D Model	Ultra Librarian 929505-2 CAD Model

Alternative Products

Product Part Number	Manufacturer	Package	Country	Similarity	Description

Description

The Junior Power Timer is a rectangular connector housing designed for use in various electronic applications from TE Connectivity AMP Connectors.

Temperature Range: Suited for most operating conditions
Contact Termination: Crimp
Color: Black
Connector Type: Plug, Tab
Number of Positions: 6
Number of Rows: 2
Fastening Type: Locking Ramp
Packaging: Bulk
Status: Active
