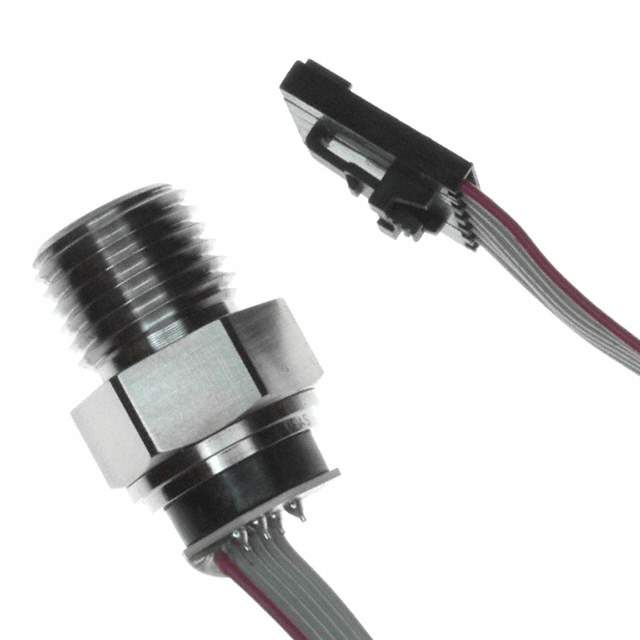

85-500G-4C Real Image
Same model may have multiple batches, images only for reference.

85-500G-4C

Part No 85-500G-4C
Manufacturer TE Connectivity
Catalog Pressure Sensors, Transducers
Description SNSR PRES 500PSIG 1/4" - 18NPT / Pressure Sensor 500PSI (3447.38kPa) Vented Gauge 0 mV ~ 100 mV Cylinder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr TE Connectivity Measurement Specialties
Package Bulk
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 500PSI (3447.38kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 100 mV
Accuracy ±0.1%
Port Style No Port
Features Temperature Compensated
Termination Style Cable with Connector
Maximum Pressure 1500PSI (10342.14kPa)
Temperature Range - Operating -40°C ~ 125°C
Package / Case Cylinder
Base Product Number 85-500
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 9026.20.4000
Other Names 2266-85-500G-4C,85500G4C,MSP6858-NDR,MSP6858
Standard Package 1
Win Source Part Number 958485-85-500G-4C
Ultra Librarian 3D Model Ultra Librarian 85-500G-4C CAD Model

Description

The 958485-85-500G-4C is a pressure sensor designed for board mount applications.

  • Package: Bulk
  • Pressure Type: Vented Gauge
  • Max Operating Pressure: 500PSI (3447.38kPa)
  • Output Type: Wheatstone Bridge
  • Output Range: 0 mV ~ 100 mV
  • Accuracy: ±0.1%
  • Max Pressure: 1500PSI (10342.14kPa)
  • Temperature Range: -40°C ~ 125°C
  • ECCN: EAR99
  • HTSUS: 9026.20.4000
  • Manufacturer: TE Connectivity Measurement Specialties
