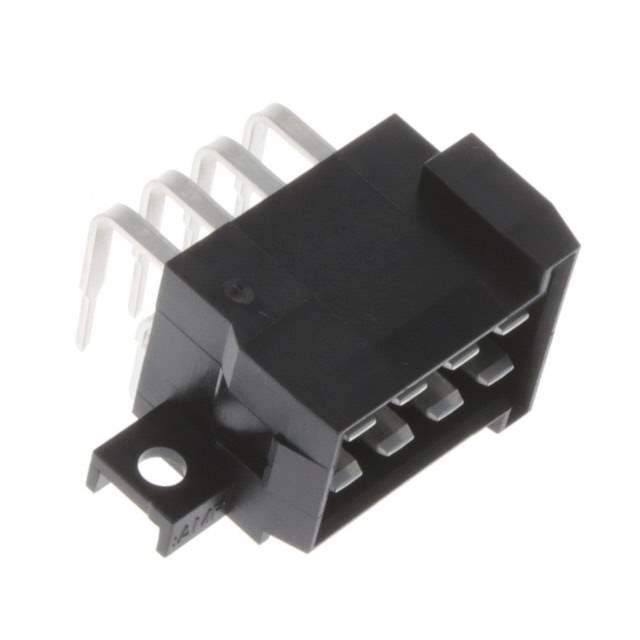

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 14 Weeks
Features Connector Header Through Hole, Right Angle 8 position 0.197" (5.00mm)
Manufacturer TE Connectivity
Series Junior Power Timer
Package Tray
Operating Temperature Range -55°C ~ 105°C
Mounting Through Hole, Right Angle
Family Name 828801
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -828801-3-LSI, -828801-3-SI, -828801-3-CSI, 2266-828801-3
Quantity per package 70
Popularity High
Supply and Demand Status Balance
Win Source Part Number 908496-828801-3
Ultra Librarian 3D Model Ultra Librarian 828801-3 CAD Model

Description

The TE Connectivity Junior Power Timer is a connector header with eight positions and a 0.197 inch (5.00mm) pitch.

  • Manufacturer: TE Connectivity
  • Product Type: Connector Header
  • Positions: Eight
  • Pitch: 0.197 inch (5.00mm)
  • Mounting: Right Angle Through-Hole
  • Operating Temperature: -55°C to 105°C
  • Package: Trays
  • Family Name: 828801
  • Supply and Demand Status: Balanced
  • Quantity per Package: 70
  • MSL Level: 1 (unlimited)
  • Estimated Production Lead Time: 14 weeks
  • REACH Status: Vendor Undefined
  • HTSUS: 8536.69.4040
  • Other Part Numbers: -828801-3-LSI, -828801-3-SI, -828801-3-CSI, and 2266-828801-3
