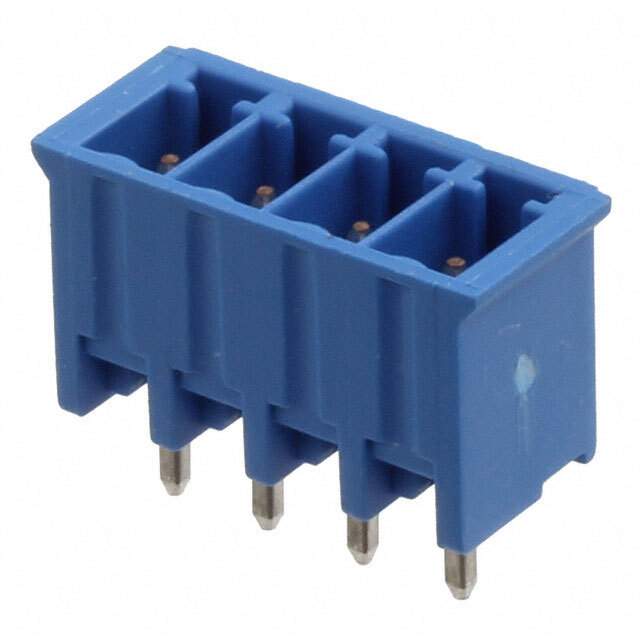

796694-4 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks - Headers, Plugs and Sockets
Mfr TE Connectivity AMP Connectors
Series Termi-Blok, Buchanan
Package Bulk
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 4
Positions Per Level 4
Number of Levels 1
Pitch 0.138" (3.50mm)
Header Orientation Vertical
Termination Style Solder
Mounting Type Through Hole
Current - UL 11 A
Voltage - UL 300 V
Color Blue
Temperature Range - Operating -40°C ~ 110°C
Contact Mating Finish Tin
Material Flammability Rating UL94 V-0
Contact Material Brass
Housing Material Polyamide (PA66), Nylon 6/6
Insulation Height 0.362" (9.20mm)
Base Product Number 796694
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 150
Win Source Part Number 1208891-796694-4
Ultra Librarian 3D Model Ultra Librarian 796694-4 CAD Model

Description

The 1208891-796694-4 is a TE Connectivity AMP Connectors electronic component that is a part of the Termi-Blok, Buchanan series.

  • Type: Header
  • Positions per level: Four
  • Shrouded: Four sides
  • Mounting: Through-hole
  • Pitch: 0.138 inches
  • Header Orientation: Vertical
  • Termination Style: Solder
  • Current Rating: 11 A
  • Voltage Rating: 300 V
  • Compliance: UL and flammability ratings
  • Temperature Range: -40°C to 110°C
  • Package: Bulk
  • Package Quantity: 150
