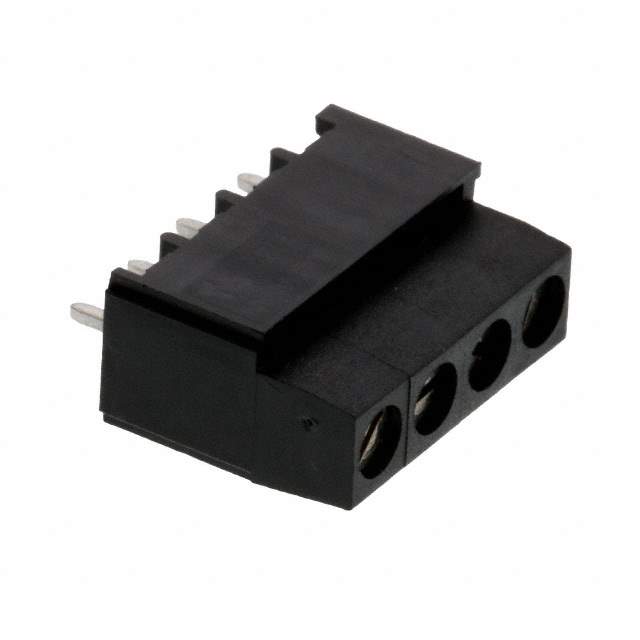

796682-4 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks - Wire to Board
Mfr TE Connectivity AMP Connectors
Series Buchanan
Package Bulk
Number of Levels 1
Positions Per Level 4
Pitch 0.197" (5.00mm)
Mating Orientation Horizontal with Board
Current 17.5 A
Voltage 300 V
Wire Gauge 12-30 AWG
Mounting Type Through Hole
Wire Termination Screw - Rising Cage Clamp
Features Interlocking (Side)
Color Black
Housing Material Polyamide (PA66), Nylon 6/6
Contact Material - Plating Brass - Tin Plated
Clamp Material - Plating Brass - Nickel Plated
Screw Material - Plating Brass - Nickel Plated
Torque - Screw 0.79 Nm (7.0 Lb-In)
Screw Thread M3
Base Product Number 796682
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names A136640,796682-4-ND
Standard Package 150
Win Source Part Number 990272-796682-4
Ultra Librarian 3D Model Ultra Librarian 796682-4 CAD Model

Description

The TE Connectivity AMP Connectors Buchanan series terminal block is a wire-to-board component with a pitch of 0.197" (5.00mm) and a voltage of 300V.

  • Pitch: 0.197" (5.00mm)
  • Voltage: 300V
  • Positions per Level: 4
  • Levels: 1
  • Wire Gauge: 12-30 AWG
  • Current: 17.5 A
  • Housing Material: Polyamide (PA66), Nylon 6/6
  • Contact Material-Plating: Brass-Tin Plated
  • Clamp Material-Plating: Brass-Nickel Plated
  • Screw Material-Plating: Brass-Nickel Plated
  • Torque-Screw: 0.79 Nm (7.0 Lb-In)
  • Screw Thread: M3
  • Mounting Type: Through-Hole
  • RoHS Compliant: Yes
  • REACH Affected: Yes
