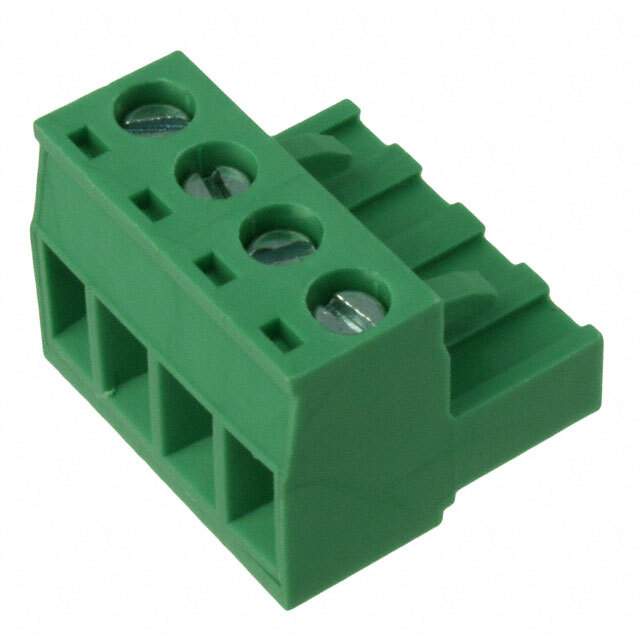

Same model may have multiple batches, images only for reference.

OSTTJ047150

Name: OSTTJ047150
Brand: On Shore Technology Inc.
SKU: 1208577
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	OSTTJ047150
Manufacturer	On Shore Technology Inc.
Catalog	Terminal Blocks
Description	TERM BLOCK PLUG 4POS STR 5MM / 4 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) Free Hanging (In-Line)
Datasheet	OSTTJ047150 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks - Headers, Plugs and Sockets
Mfr	On Shore Technology Inc.
Series	OSTTJ
Package	Tray
Type	Plug, Female Sockets
Number of Positions	4
Positions Per Level	4
Number of Levels	1
Pitch	0.197" (5.00mm)
Termination Style	Screw
Mounting Type	Free Hanging (In-Line)
Voltage - UL	300 V
Wire Gauge or Range - AWG	12-30 AWG
Wire Gauge or Range - mm2	0.34-2.5mm2
Color	Green
Temperature Range - Operating	-40°C ~ 115°C
Material Flammability Rating	UL94 V-0
Torque - Screw	0.56 Nm (5.0 Lb-In)
Wire Strip Length	7-8mm
Contact Material	Brass
Housing Material	Brass
Base Product Number	OSTTJ04
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.8000
Other Names	Q10305208C,OSTTJ047150-ND,ED2781
Standard Package	1
Win Source Part Number	1208577-OSTTJ047150
Ultra Librarian 3D Model	Ultra Librarian OSTTJ047150 CAD Model

Alternative Products

Description

The On Shore Technology Inc. OSTTJ047150 is a plug type connector with female sockets.

Positions per Level: 4
Levels: 1
Pitch: 0.197" (5.00mm)
Voltage Rating: 300V
Wire Gauge: 12-30 AWG or 0.34-2.5mm2
Color: Green
Contact Material: Brass
Housing Material: Yes
Wire Termination: Screw Type
Mounting: Screws
Screw Torque: 0.56 Nm (5.0 Lb-In)
Category: Connectors and Interconnects
Status: Active
Temperature Range: -40°C to 115°C
Packaging: Tray
Pieces per Package: 1
