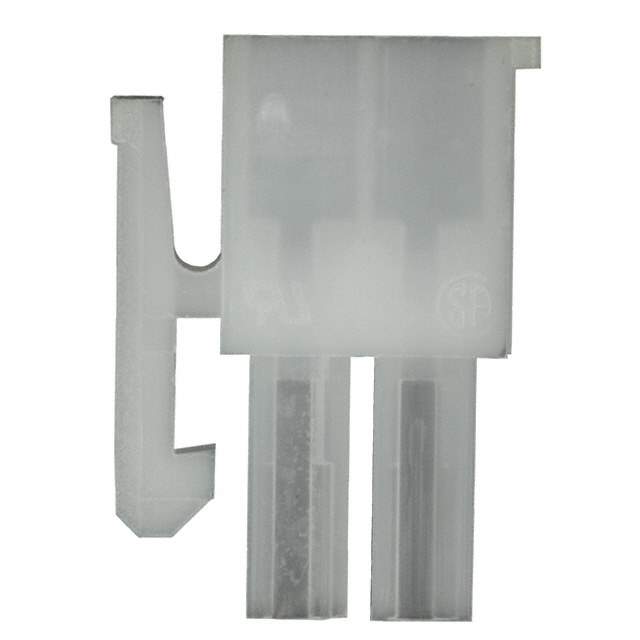

794954-2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr TE Connectivity AMP Connectors
Series VAL-U-LOK
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 2
Number of Rows 2
Row Spacing 0.165" (4.20mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color Natural
Note Contacts Not Included
Base Product Number 794954
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Other Names 2266-794954-2,-794954-2-SI,-794954-2-LSI,-794954-2-CSI,7949542,A30590
Standard Package 500
Win Source Part Number 1004314-794954-2
Ultra Librarian 3D Model Ultra Librarian 794954-2 CAD Model

Description

The 794954-2 is a receptacle connector that belongs to the rectangular connector housing category.

  • Positions: 2
  • Rows: 2
  • Row Spacing: 0.165" (4.20mm)
  • Fastening Type: Latch Lock
  • Package Size: 500
  • Mounting Style: Free Hanging (In-Line)
  • RoHS Compliant: Yes
