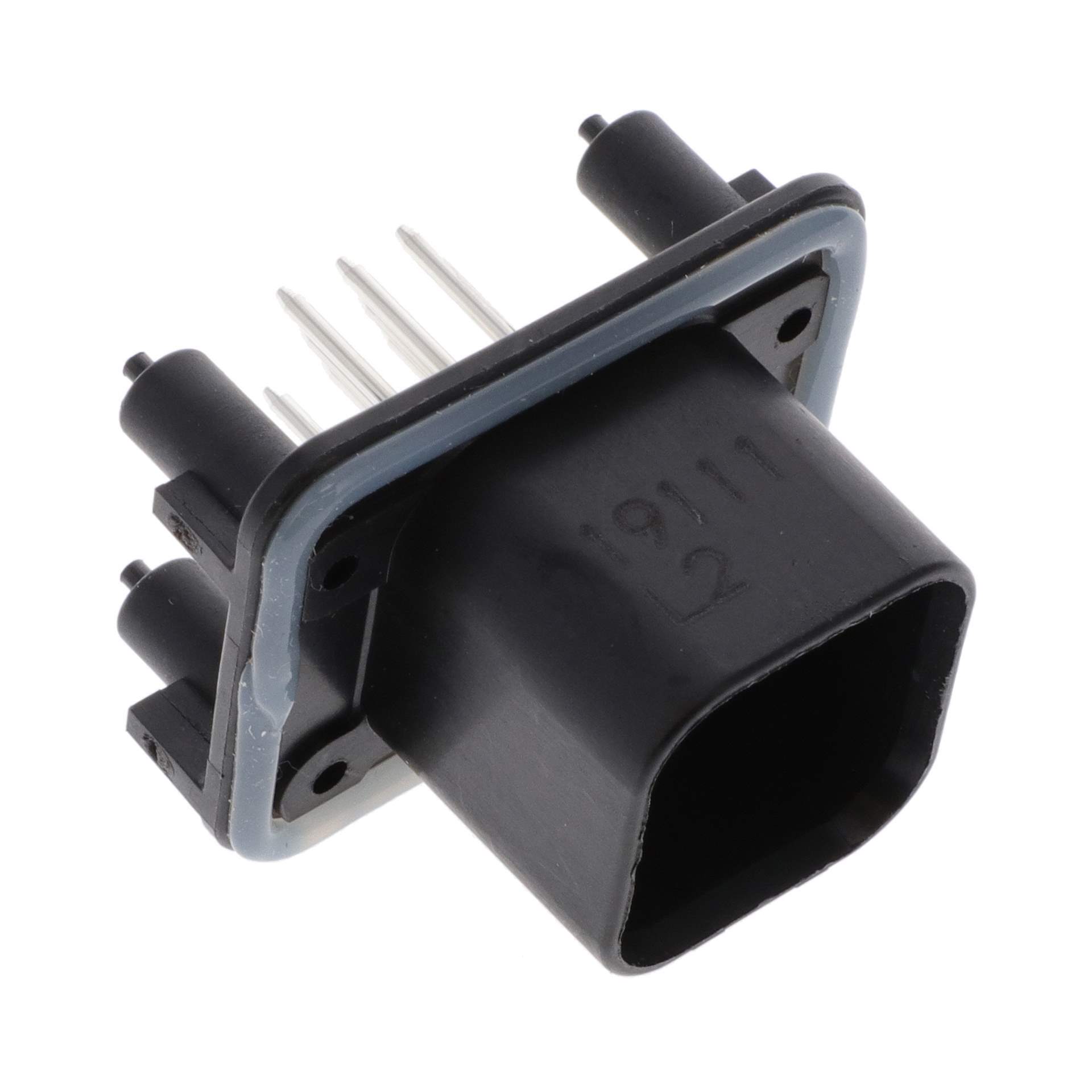

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series AMPSEAL
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.157" (4.00mm)
Number of Positions 8
Number of Rows 3
Row Spacing - Mating 0.157" (4.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Panel Mount, Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Shape Circular
Contact Finish - Mating Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Mounting Flange, Sealed
Temperature Range - Operating -40°C ~ 105°C
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250VAC
Applications Automotive, Industrial
Base Product Number 776276
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names A129037,776276-1-ND,2266-776276-1,-776276-1-CSI,-776276-1-SI
Standard Package 36
Win Source Part Number 1021446-776276-1
Ultra Librarian 3D Model Ultra Librarian 776276-1 CAD Model

Description

The TE Connectivity AMP Connectors AMPSEAL 8-Position Header is a male pin connector that is designed for board to cable/wire applications.

  • Positions: 8
  • Application: Board to Cable/Wire
  • Voltage Rating: 250VAC
  • Features: Sealed, Mounting Flange
  • Pitch: 0.157" (4.00mm)
  • Row Spacing: 0.157" (4.00mm)
  • Operating Temperature: -40°C to 105°C
  • Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
  • Contact Finish-Mating: Tin
  • Package: Bulk (36)
  • Applications: Automotive and Industrial
