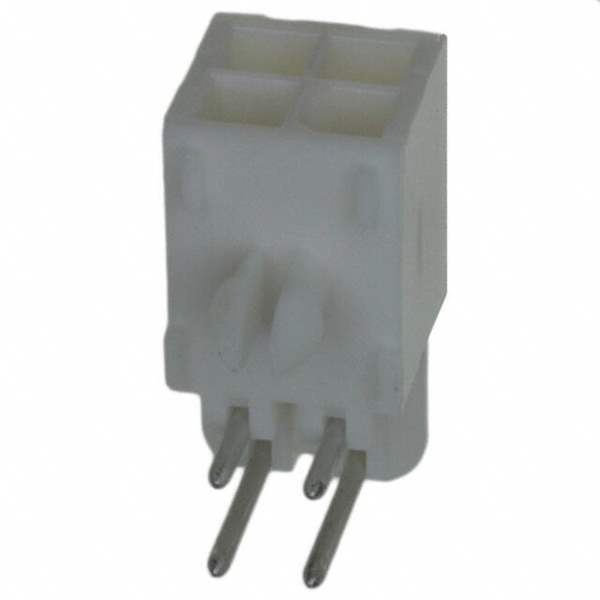

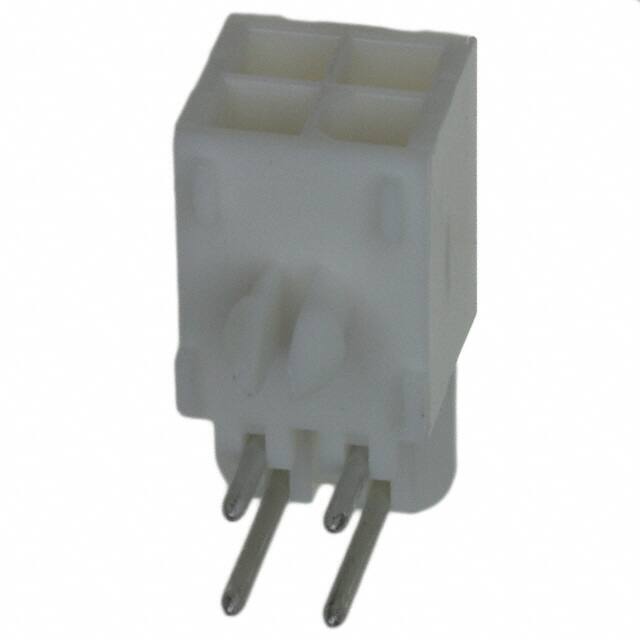

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Mini-Universal MATE-N-LOK
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.163" (4.14mm)
Number of Positions 4
Number of Rows 2
Row Spacing - Mating 0.163" (4.14mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating -
Contact Length - Post 0.145" (3.68mm)
Overall Contact Length -
Insulation Height 0.386" (9.80mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin-Lead
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Board Lock
Temperature Range - Operating -20°C ~ 105°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color White
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 600VAC
Mated Stacking Heights -
Contact Finish Thickness - Post 150.0µin (3.81µm)
Applications General Purpose
Base Product Number 770968
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1377621-770968-2
Ultra Librarian 3D Model Ultra Librarian 770968-2 CAD Model

Description

The TE Connectivity AMP Connectors Mini-Universal MATE-N-LOK 770968 series header is a male pin connector with a 4.14mm pitch.

  • Series: Mini-Universal MATE-N-LOK 770968
  • Mounting Type: Through-Hole, Right Angle
  • Application: General Purpose
  • Pitch: 4.14mm
  • Shrouded: 4 Walls
  • Termination: Solder
  • Contact Finish (Mating): Gold
  • Contact Finish Thickness (Mating): 0.76μin
  • Contact Finish (Post): Tin-Lead
  • Contact Material: Brass
  • Insulation Material: Polyamide (PA), Nylon
  • Voltage Rating: 600VAC
  • Flammability Rating: UL94 V-0
  • Connection Type: Board to Cable/Wire
  • Contact Length (Post): 3.68mm
  • Insulation Height: 9.80mm
  • Insulation Color: White
  • Product Status: Active
  • Temperature Range: -20°C to 105°C
