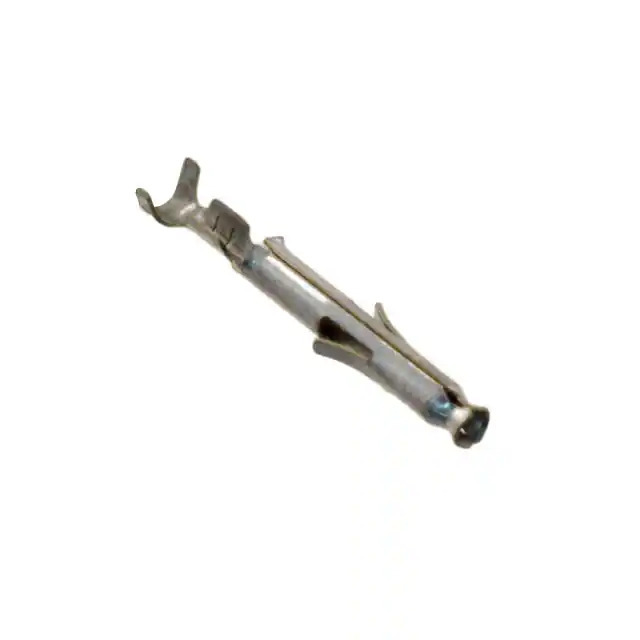

770834-1 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Contacts - Multi Purpose
Mfr TE Connectivity AMP Connectors
Series Mini-Universal MATE-N-LOK
Package Tape & Reel (TR)
Product Status Active
Type Stamped
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 26-30 AWG
Contact Material Brass
Contact Finish Tin
Contact Finish Thickness -
Base Product Number 770834
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1362756-770834-1
Ultra Librarian 3D Model Ultra Librarian 770834-1 CAD Model

Description

The Mini-Universal MATE-N-LOK Socket is a versatile contact designed for various applications.

  • Contact Type: Socket
  • Termination: Crimp
  • Wire Gauge: 26-30 AWG
  • Contact Finish: Tin
  • Contact Material: Brass
