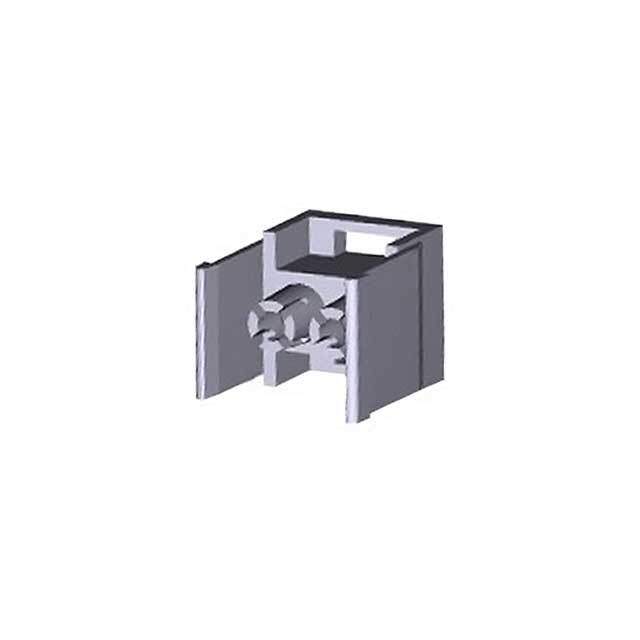

770046-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Housings
Mfr TE Connectivity
Series Universal MATE-N-LOK II
Package Bulk
Connector Type Receptacle, Rear Section
Contact Type Male or Female
Number of Positions 2
Number of Rows 1
Row Spacing -
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color White
Features -
Insulation Material Polyamide (PA), Nylon
Temperature Range - Operating -55°C ~ 105°C
Note Contacts Not Included
Base Product Number 770046
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Standard Package 1 pcs
Win Source Part Number 1381176-770046-1
Ultra Librarian 3D Model Ultra Librarian 770046-1 CAD Model

Description

The 1198312 is a 2-position rectangular connector housing from the Universal MATE-N-LOK II series by TE Connectivity.

  • Series: Universal MATE-N-LOK II
  • Product Type: Connector Housing
  • Position: 2
  • Color: White
  • Fastening Type: Latch Lock
  • Connector Type: Receptacle Rear Section
  • Contact Gender: Male or Female
  • Insulation Material: Polyamide (PA) Nylon
  • Temperature Range: -55°C to 105°C
  • Mounting Type: Free Hanging (In-Line)
  • Package: Bulk
  • Quantity per Package: 1 pc
