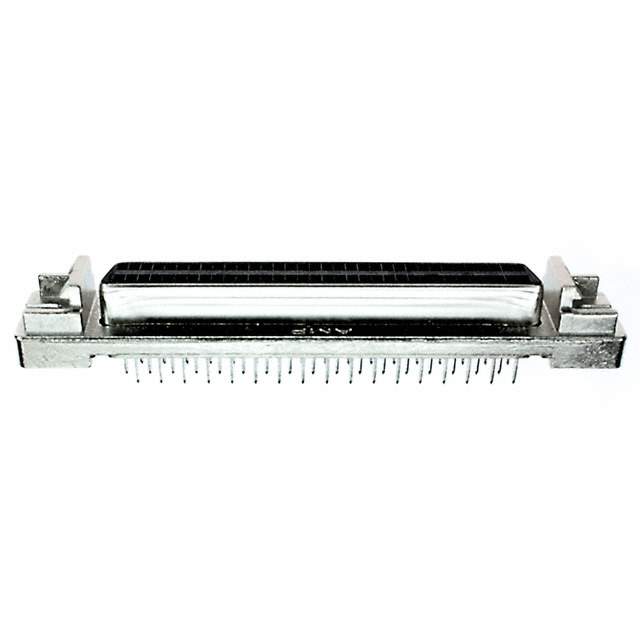

749069-7 Real Image
Same model may have multiple batches, images only for reference.

749069-7

Part No 749069-7
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-TYPE RCPT 68POS VERT SLDR / 68 Position D-Type Receptacle, Female Sockets Connector
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Style D-Type
Connector Type Receptacle, Female Sockets
Number of Positions 68
Number of Rows 2
Mounting Through Hole
Shell Size, Connector Layout 0.050 Pitch x 0.100 Row to Row
Contact Type Signal
Flange Feature Housing/Shell (2-56); Latchblocks, Rails
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Features Shielded
Voltage Rating 30V
Color Black
Dielectric Material Thermoplastic
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 749069
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A23756,749069-7-ND,7490697
Standard Package 8
Win Source Part Number 1333228-749069-7
Ultra Librarian 3D Model Ultra Librarian 749069-7 CAD Model

Description

The TE Connectivity AMP Connectors 1333228-749069-7 D-Sub Connector Assembly is a two-row, 68-position receptacle for female sockets.

  • Positions: 68
  • Rows: 2
  • Connector Type: Receptacle for Female Sockets
  • Shielded: Yes
  • Voltage Rating: 30V
  • Mounting: Through-Hole
  • Termination: Soldering
  • Shell Material: Nickel-Plated Steel
  • Dielectric Material: Thermoplastic
  • Flammability Rating: UL94 V-0
  • Temperature Range: -55°C to 105°C
  • Connector Style: D-Type
  • Shell Size: 0.050 Pitch x 0.100 Row to Row
  • RoHS Compliant: No
