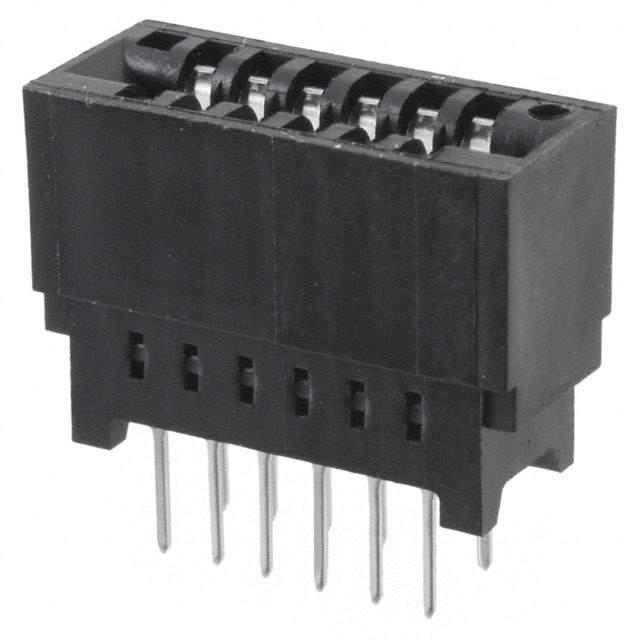

7-5530843-6 Real Image
Same model may have multiple batches, images only for reference.

7-5530843-6

Part No 7-5530843-6
Manufacturer TE Connectivity
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN CARDEDGE FEMALE 12POS 0.100
Datasheet
7-5530843-6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series Standard Edge II
Packaging Bulk
Card Type Multibus I
Gender Female
Number of Positions 12
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 2
Pitch 0.100" (2.54mm)
Mounting Style Through Hole
Termination Solder
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Color Black
Operating Temperature Range -55°C ~ 85°C
Material - Insulation Polyester, Glass Filled
Read Out Dual
Win Source Part Number 766128-7-5530843-6
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 7-5530843-6 CAD Model

Description

The TE Connectivity AMP Connectors 766128-7-5530843-6 is a standard edge II connector.

  • Pitch: 0.100 inches (2.54mm)
  • Positions: 12
  • Connector Type: Female
  • Mounting Style: Through-hole
  • Color: Black
  • Contact Finish: Gold, 30μin (0.76μm)
  • Contact Material: Phosphor Bronze
  • Insulation Material: Polyester, Glass-filled
  • Card Type: Multibus I
  • Readout: Dual
  • Operating Temperature: -55°C to 85°C
  • Packaging: Bulk
