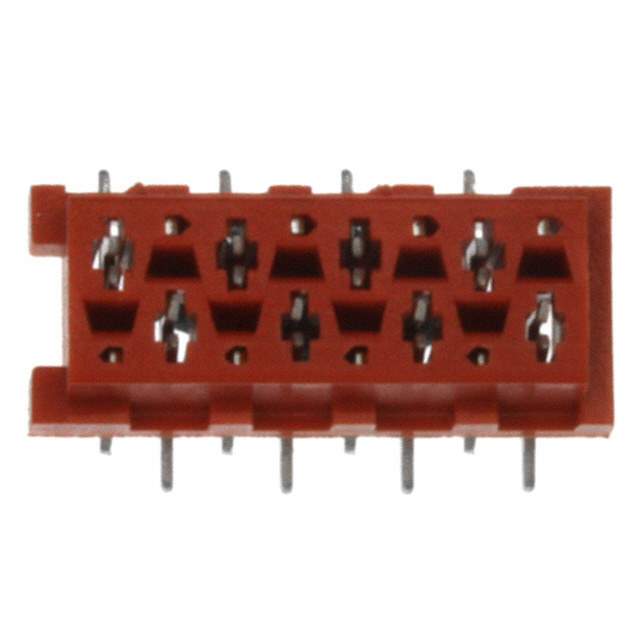

7-188275-8 Real Image
Same model may have multiple batches, images only for reference.

7-188275-8

Part No 7-188275-8
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONNECTOR, FEMALE-ON-BOARD TOP-ENTRY, SMD, Micro-MaTch | CONN RCPT 8POS 0.1 TIN SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Reel
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 8
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Style SMD
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Tin
Insulation Color Red
Insulation Height 0.209" (5.30mm)
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Pick and Place
Voltage Rating 100VDC
Applications Automotive, General Purpose
Insulation Material Polyamide (PA46), Nylon 4/6, Glass Filled
Contact Material Phosphor Bronze
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 759122-7-188275-8
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 7-188275-8 CAD Model

Description

The 759122-7-188275-8 is a pick and place receptacle connector with forked contact type from TE Connectivity AMP Connectors.

  • Insulation Material: Polyamide (PA46), nylon 4/6, glass-filled
  • Color: Red
  • Positions: 8
  • Rows: 2
  • Voltage Rating: 100VDC
  • Contact Material: Phosphor Bronze
  • Pitch-Mating: 0.100" (2.54mm)
  • Contact Finish-Mating: Tin
  • Termination: Solder
  • Application: Automotive and general-purpose
  • Style: Board to board or cable
  • Fastening Type: Push-Pull
  • Material Flammability Rating: UL94 V-0
  • Packaging: Reel
  • Market Popularity: Medium demand
  • Supply and Demand Status: Balanced
