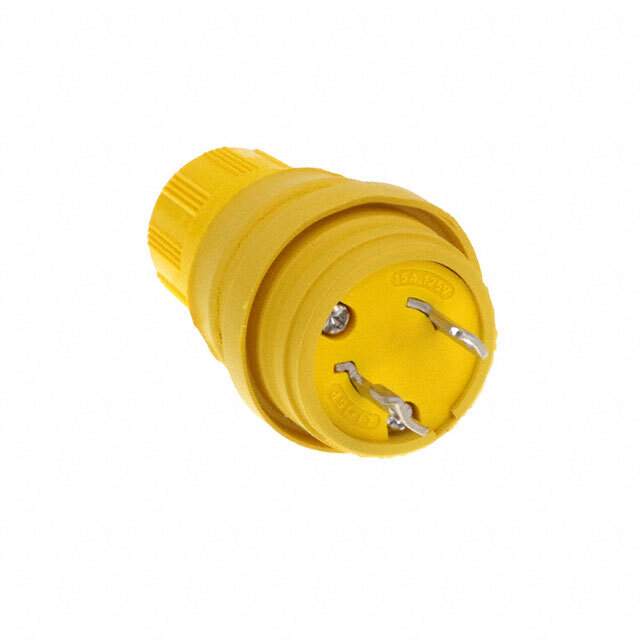

1301460077 Real Image
Same model may have multiple batches, images only for reference.

1301460077

Part No 1301460077
Manufacturer Molex, LLC
Catalog Power Entry Connectors - Inlets, Outlets, Modules
Description PWR ENT PLUG NEMAL1-15 STR SCRW
Datasheet
1301460077 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Series Watertite 130146
Packaging Bulk
Connector Style NEMA L1-15P
Connector Type Plug, Male Blades
Current - UL 15A
Voltage - UL 125VAC
Filter Type Unfiltered - Commercial
Fuse No
Number of Positions 2
Mounting Free Hanging (In-Line)
Termination Screw
Features Cord Grip, Locking Blade, Strain Relief
Ingress Protection IP67 - Dust Tight, Waterproof
Approvals CSA, UL
Win Source Part Number 761950-1301460077
Popularity Medium
Supply and Demand Status Balance
Family Name 130146
Introduction Date June 12, 2012
ECCN EAR99
Country of Origin Mexico
Halogen Free Unknown
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 1301460077 CAD Model

Description

The Molex, LLC Watertite 130146 Connector is a high-performance plug connector manufactured by Molex, LLC.

  • Features: Cord Grip, Locking Blade, Strain Relief
  • Gender: Male Blade
  • Termination: Screw
  • Voltage Rating: 125VAC
  • Current Rating: 15A
  • IP Rating: IP67
  • Approvals: CSA, UL
  • Mounting: Free-hanging (In-Line)
  • Filtering: Unfiltered
  • Fuse: No
  • Switch: No
  • RoHS Compliant: Yes
  • Lead-Free: Yes
