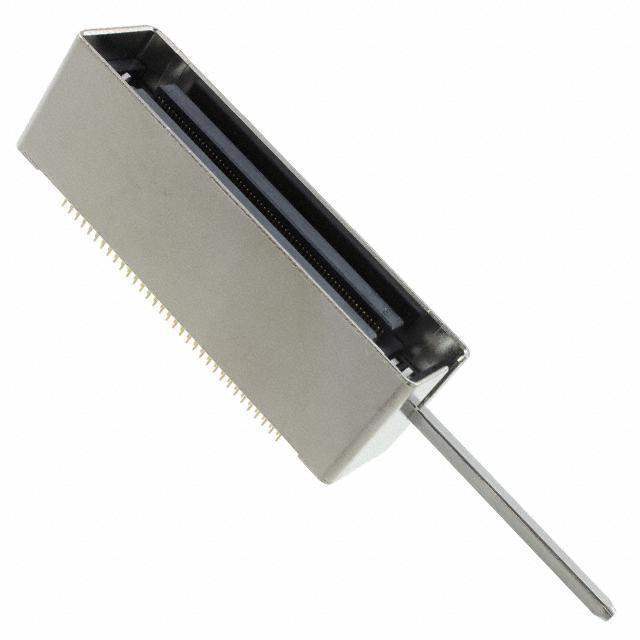

6565204-1 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

6565204-1

Part No 6565204-1
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN RCPT 260POS PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1201108-6565204-1
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects -Backplane Connectors- Specialized
Series TC-ZIF, Medical
Package Tray
Product Status Active
Connector Type Receptacle, Female Sockets
Material Flammability Rating UL94 V-0
Operating Temperature -55°C ~ 85°C
Base Product Number 6565204
Number of Rows 4
Ultra Librarian 3D Model Ultra Librarian 6565204-1 CAD Model

Description

The TC-ZIF series from TE Connectivity AMP Connectors is a specialized backplane connector designed for medical applications.

  • Type: Receptacle with female sockets
  • Rows: Four
  • Application: Medical devices and equipment
  • Operating Temperature: -55°C to 85°C
  • Material: UL94 V-0 rated
  • Package: Tray
  • Base Product Number: 6565204
  • Production Status: Active
