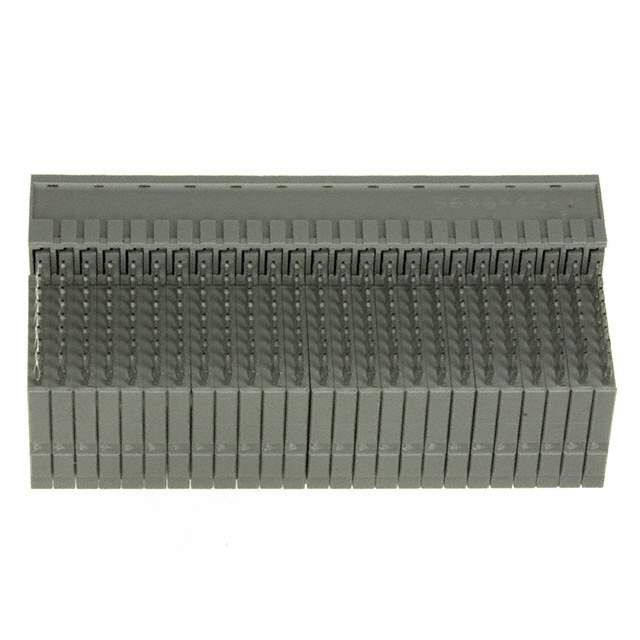

5646445-1 Real Image
Same model may have multiple batches, images only for reference.

5646445-1

Part No 5646445-1
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN RCPT HM 200POS RT ANG 2MM
Datasheet
5646445-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tube/Rail
Status Active
Connector Type Receptacle, Female Sockets
Connector Style E 25
Number of Positions 200
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 8
Mounting Board Edge, Through Hole, Right Angle
Termination Press-Fit
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Current Rating 1.5A
Voltage Rating 750Vrms
Temperature Range - Operating -55°C to 125°C
Win Source Part Number 197793-5646445-1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5646445-1 CAD Model

Description

Product Description for 5646445-1

The 5646445-1 is a versatile electronic connector known for its reliability and robust design, making it an excellent choice for various applications requiring secure connections.

  • Applications:
    • Automotive Connections
    • Industrial Machinery
    • Home Appliances
  • Features and Benefits:
    • Secure lock mechanism to ensure stable connectivity
    • High durability with resistance to environmental factors
    • Compact design suitable for tight spaces
  • Additional Details:
    • Manufactured under stringent quality standards
    • Compatible with various cable types
