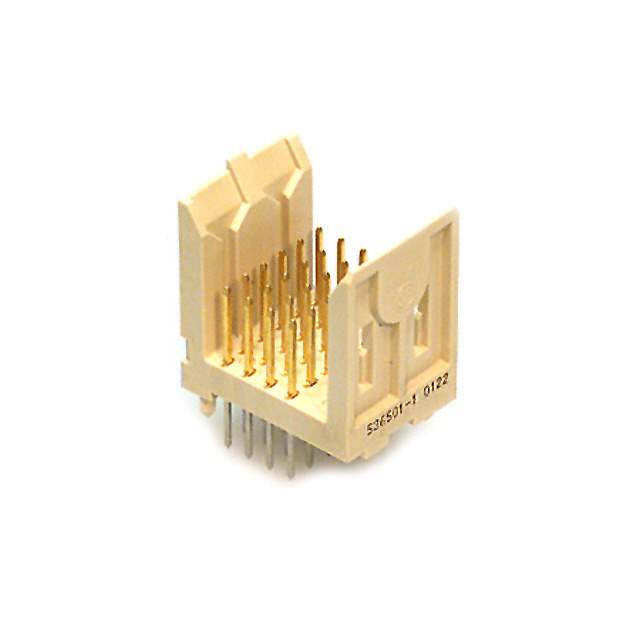

536501-1 Real Image
Same model may have multiple batches, images only for reference.

536501-1

Part No 536501-1
Manufacturer TE Connectivity
Catalog Backplane Connectors
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - Specialized
Mfr TE Connectivity AMP Connectors
Series Z-PACK
Package Tube
Connector Type Header, Male Pins
Connector Style Futurebus
Number of Positions 24
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 4
Mounting Type Through Hole
Termination Solder
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C ~ 125°C
Voltage Rating 30V
Base Product Number 536501
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1315002-536501-1
Ultra Librarian 3D Model Ultra Librarian 536501-1 CAD Model

Description

The TE Connectivity AMP Connectors 536501 Z-PACK header is a specialized backplane connector with 24 positions and 4 rows. It has a pitch of 0.079 inches (2.00mm) and features a board guide for easy installation. This connector is male and has all positions loaded.

  • Connector Series: Z-PACK
  • Number of Positions: 24
  • Number of Rows: 4
  • Pitch: 0.079 inches (2.00mm)
  • Features: Board Guide
  • Gender: Male
  • Positions Loaded: All
  • Termination Style: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Connector Style: Futurebus
  • Voltage Rating: 30V
  • Material Flammability Rating: UL94 V-0
  • Temperature Range: -55°C to 125°C
