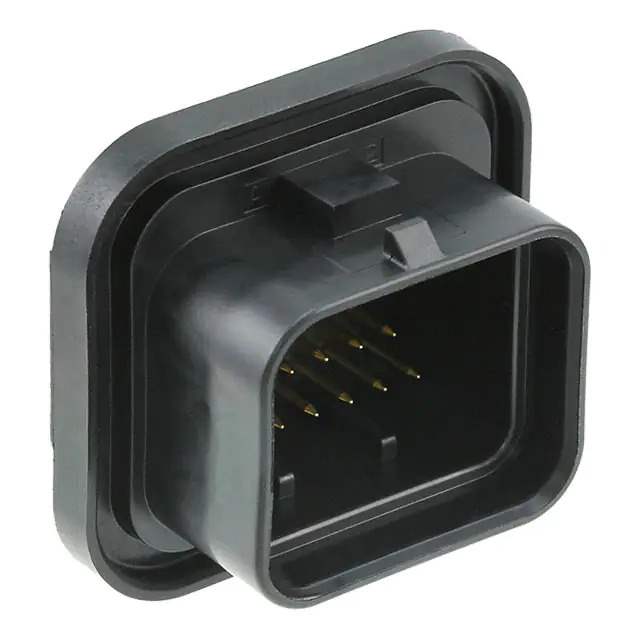

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series Superseal
Package Tube
Product Status Active
Connector Type Receptacle
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 26
Number of Rows 4
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.972" (24.70mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyester
Features Sealed
Temperature Range - Operating -40°C ~ 125°C
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250V
Applications Automotive
Base Product Number 6489170
Standard Package 17 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 847296-6473418-1
Ultra Librarian 3D Model Ultra Librarian 6473418-1 CAD Model

Description

The Superseal series connector is a rectangular receptacle with male pins, designed for use in automotive applications. It features a sealed design for protection against moisture and dust.

  • Positions: 26
  • Pins Loaded: Male pins on all 4 rows
  • Termination: Solder
  • Fastening: Locking ramp
  • Contact Material: Brass
  • Voltage Rating: 250V
  • Insulation Material: Polyester
  • Mounting Type: Through-hole
  • Shroud: 4 walls
  • Pitch: 0.118" (3.00mm)
  • Contact Finish: Gold
  • Operating Temperature: -40°C to 125°C
  • Manufacturer: TE Connectivity
  • Package Quantity: 17 pieces
