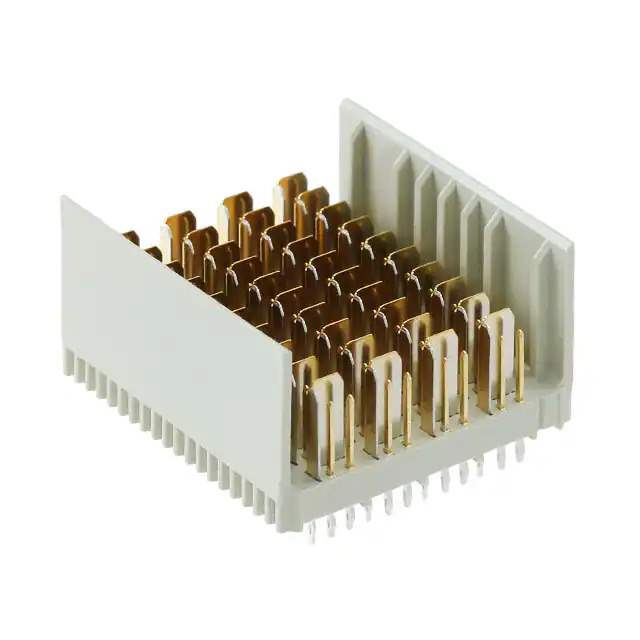

6469074-1 Real Image
Same model may have multiple batches, images only for reference.

6469074-1

Part No 6469074-1
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN HDR HIGH SPEED 120POS PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Specialized
Mfr TE Connectivity
Series Z-PACK HM-Zd
Package Tube
Product Status Active
Connector Usage Backplane
Connector Type Header, Male Pins and Blades
Connector Style High Speed
Number of Positions 120
Number of Positions Loaded All
Pitch 0.098" (2.50mm)
Number of Rows 8
Number of Columns 10
Mounting Type Through Hole
Termination Press-Fit
Contact Layout, Typical 80 Single Signal, 40 Ground
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Current Rating (Amps) 0.700A
Material Flammability Rating UL94 V-0
Temperature Range - Operating -65°C ~ 105°C
Voltage Rating 250V
Base Product Number 6469074
Standard Package 20 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856899-6469074-1
Ultra Librarian 3D Model Ultra Librarian 6469074-1 CAD Model

Description

The Z-PACK HM-Zd Backplane Connector is a specialized electronic component designed for high-speed applications.

  • Series: Z-PACK HM-Zd
  • Pitch: 0.098 inches (2.50mm)
  • Positions: 120
  • Rows: 8
  • Positions Loaded: All
  • Termination: Press-Fit
  • Contact Finish: Gold, 30.0μin (0.76μm)
  • Application: Backplane
  • Voltage Rating: 250V
  • Current Rating: 0.700A
  • Temperature Range: -65°C to 105°C
  • Product Status: Active
  • Standard Package: 20 pieces
