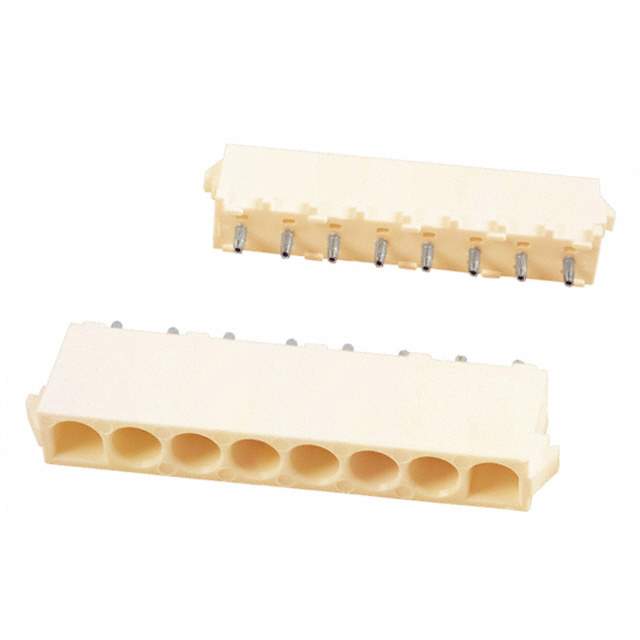

641825-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Universal MATE-N-LOK
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.250" (6.35mm)
Number of Positions 8
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.155" (3.94mm)
Insulation Height 0.550" (13.97mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA), Nylon
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-2
Insulation Color White
Current Rating (Amps) 12A
Voltage Rating 600VAC
Applications General Purpose
Base Product Number 641825
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 6418251,2266-641825-1,A14320,-641825-1-SI
Standard Package 59
Win Source Part Number 1016696-641825-1
Ultra Librarian 3D Model Ultra Librarian 641825-1 CAD Model

Description

The Universal MATE-N-LOK 1016696-641825-1 is a male header connector that has 8 positions and is suitable for use in board to cable/wire applications.

  • Pitch: 0.250 inches
  • Voltage Rating: 600VAC
  • Current Rating: 12A
  • Applications: General-purpose
  • Mounting Type: Through-hole
  • Temperature Range: -40°C to 105°C
  • ECCN: EAR99 compliant
