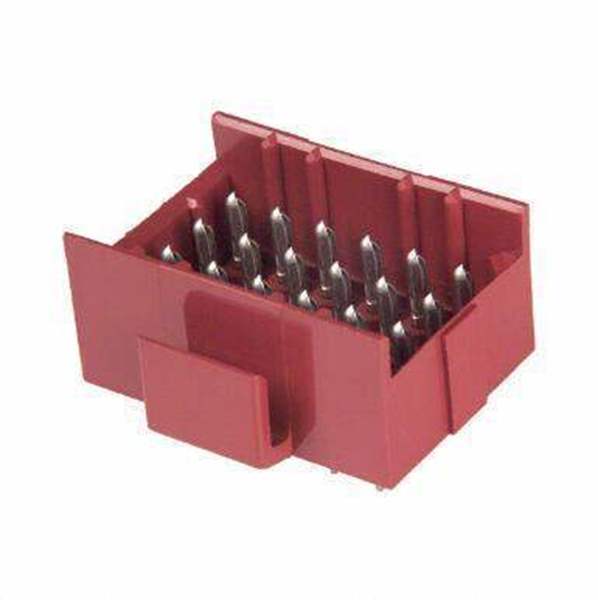

640505-1TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

640505-1

Part No 640505-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 24POS 4.2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Package Bulk
Product Status Active
Contact Type Male Pin
Number of Rows 4
Number of Positions Loaded All
Shrouding Shrouded - 4 Wall
Fastening Type Latch Lock
Contact Length - Mating 0.220" (5.59mm)
Contact Length - Post 0.150" (3.81mm)
Insulation Height 0.531" (13.50mm)
Win Source Part Number WS1210081-640505-1
Ultra Librarian 3D Model Ultra Librarian 640505-1 CAD Model

Description

Connector Header Through Hole 24 position 0.165" (4.20mm)
