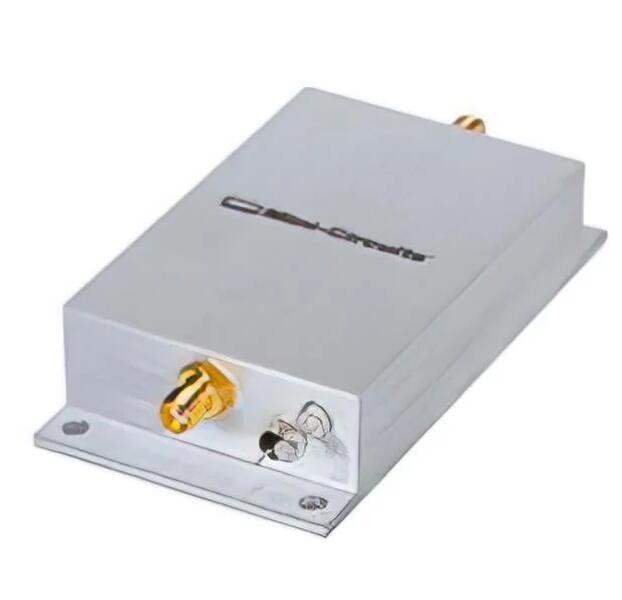

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Package Tray
Product Status Active
Frequency 950 MHz ~ 2.15 GHz
P1dB 22dBm
Gain 25dB
Noise Figure 1.5dB
RF Type PCS, UMTS
Voltage - Supply 12V
Current - Supply 300mA
Test Frequency 1.5GHz ~ 2GHz
Grade -
Mounting Type Chassis Mount
Package / Case Module, SMA Connectors
Ultra Librarian 3D Model Ultra Librarian ZRL-2150+ CAD Model

Description

RF Amplifier IC PCS, UMTS 950MHz ~ 2.15GHz
