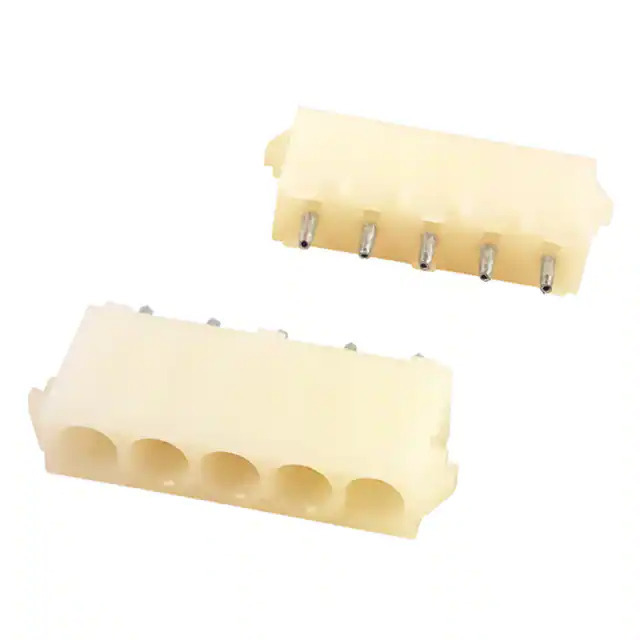

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr TE Connectivity AMP Connectors
Series Universal MATE-N-LOK
Package Bulk
Product Status Active
Connector Type Header
Contact Type Female Socket
Style Board to Cable/Wire
Number of Positions 5
Number of Positions Loaded All
Pitch - Mating 0.250" (6.35mm)
Number of Rows 1
Row Spacing - Mating -
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Insulation Color Natural
Insulation Height 0.580" (14.73mm)
Contact Length - Post 0.155" (3.94mm)
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-2
Contact Finish - Post Tin
Mated Stacking Heights -
Ingress Protection -
Features -
Current Rating (Amps) -
Voltage Rating -
Applications -
Insulation Material Polyamide (PA), Nylon
Contact Shape Circular
Contact Material Phosphor Bronze
Contact Finish Thickness - Post -
Base Product Number 640467
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362592-640467-1
Ultra Librarian 3D Model Ultra Librarian 640467-1 CAD Model

Description

The TE Connectivity AMP Connectors Universal MATE-N-LOK Header is a reliable and versatile connector for various applications.

  • Current Rating: amps
  • Connection Type: Board to Cable/Wire
  • Contact Type: Female Socket
  • Pitch: 0.250" (6.35mm)
  • Positions: 5
  • Mounting Type: Through Hole
  • Contact Finish: Tin
  • Insulation Material: Polyamide (PA) and Nylon
  • Flammability Rating: UL94 V-2
  • Temperature Range: -40°C to 105°C
  • It is suitable for a wide range of applications.
