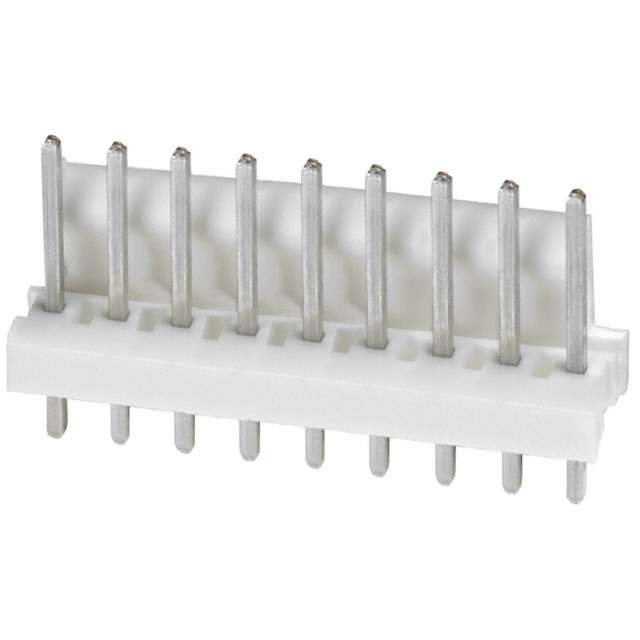

640456-9 Real Image
Same model may have multiple batches, images only for reference.

640456-9

Part No 640456-9
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 9POS 2.54MM / Connector Header Through Hole 9 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series MTA-100
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 9
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.295" (7.49mm)
Contact Length - Post 0.140" (3.56mm)
Overall Contact Length 0.535" (13.59mm)
Insulation Height 0.305" (7.75mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250VAC
Applications General Purpose
Base Product Number 640456
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2266-640456-9,-405029927-SI,-405029927-SI-ND,-640456-9-SI,6404569,A19473
Standard Package 1
Win Source Part Number 1181313-640456-9
Ultra Librarian 3D Model Ultra Librarian 640456-9 CAD Model

Description

The TE Connectivity AMP Connectors 1181313-640456-9 is a rectangular connector that belongs to the MTA-100 series.

  • Manufacturer: TE Connectivity AMP Connectors
  • Series: MTA-100
  • Connector Type: Male Pin Header
  • Positions: 9
  • Loaded Positions: All
  • Voltage Rating: 250VAC
  • Application: General-Purpose
  • Temperature Range: -55°C to 105°C
  • Package: Bulk
