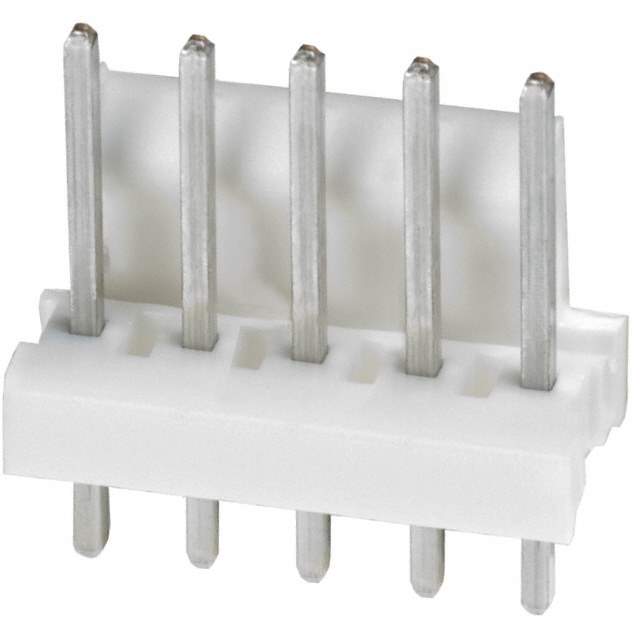

640454-5 Real Image
Same model may have multiple batches, images only for reference.

640454-5

Part No 640454-5
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 5POS 2.54MM / Connector Header Through Hole 5 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series MTA-100
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 5
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Type Through Hole
Termination Solder
Contact Length - Mating 0.295" (7.49mm)
Contact Length - Post 0.140" (3.56mm)
Overall Contact Length 0.535" (13.59mm)
Insulation Height 0.305" (7.75mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250VAC
Applications General Purpose
Base Product Number 640454
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names -640454-5-SI,A19432,2266-640454-5,6404545
Standard Package 1
Win Source Part Number 1003245-640454-5
Ultra Librarian 3D Model Ultra Librarian 640454-5 CAD Model

Description

The MTA-100 series header from TE Connectivity AMP Connectors is a male pin connector with 5 positions.

  • Positions: 5
  • Application: Board-to-Cable/Wire
  • Contact Material: Copper Alloy
  • Contact Finish: Tin
  • Pitch Mating: 0.100" (2.54mm)
  • Voltage Rating: 250VAC
  • Temperature Range: -55°C to 105°C
  • Mounting: Through-Hole
  • Shrouding: Shrouded 1-Wall
  • Contact Length (Mating): 0.295" (7.49mm)
  • Contact Length (Post): 0.140" (3.56mm)
  • Contact Length (Overall): 0.535" (13.59mm)
  • Insulation Height: 0.305" (7.75mm)
  • Insulation Color: Natural
  • Material Flammability Rating: UL94 V-0
  • Application: General-Purpose
