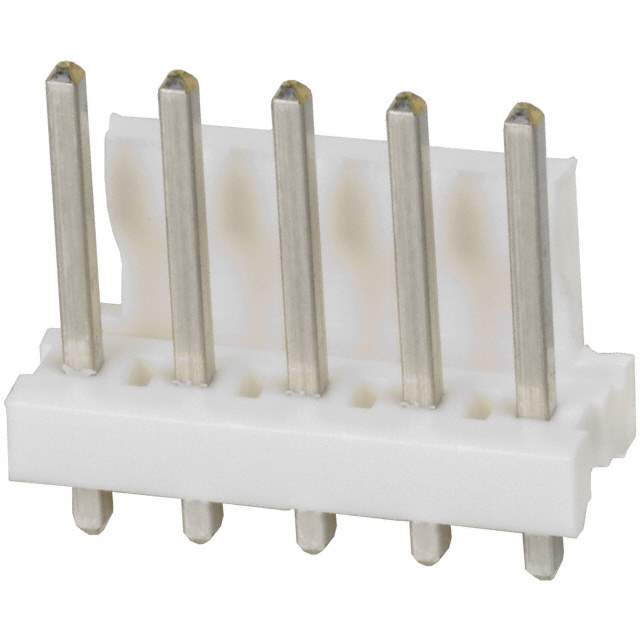

Same model may have multiple batches, images only for reference.

640445-5

Name: 640445-5
Brand: TE Connectivity
SKU: 421014
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	640445-5
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 5POS .156 TIN
Datasheet	640445-5 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	TE Connectivity AMP Connectors
Packaging	Bulk
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.156" (3.96mm)
Style	Board to Cable/Wire
Shrouding	Shrouded - 1 Wall
Number of Positions	5
Number of Positions Loaded	All
Number of Rows	1
Mounting	Through Hole
Termination	Solder
Fastening Type	Friction Lock
Contact Length - Mating	0.400" (10.16mm)
Contact Length - Post	0.125" (3.18mm)
Overall Contact Length	0.650" (16.51mm)
Insulation Height	0.425" (10.80mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Insulation Material	Thermoplastic, Glass Filled
Temperature Range - Operating	-55°C to 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating	Varies by Wire Gauge
Voltage Rating	600VAC
Applications	General Purpose, Industrial
Win Source Part Number	1006658-640445-5
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 640445-5 CAD Model

Alternative Products

Description

The 1006658-640445-5 is a male pin header connector that is designed for use in various electronic devices. TE Connectivity AMP Connectors.

Manufacturer: TE Connectivity AMP Connectors
Series: Win Source
Design: Shrouded with one wall
Insulation Material: Thermoplastic, Glass-Filled
Material Flammability Rating: UL94 V-0
