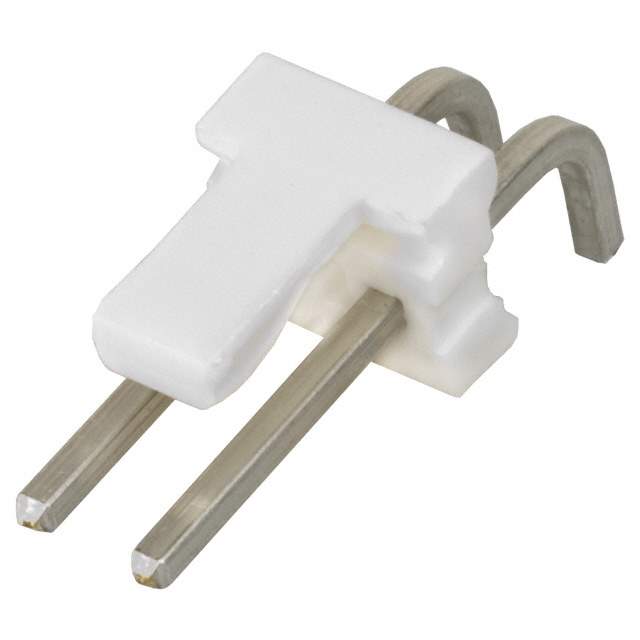

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Style Through Hole, Right Angle
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.400" (10.16mm)
Contact Length - Post 0.125" (3.18mm)
Insulation Height 0.300" (7.62mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Glass Filled
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 600VAC
Applications General Purpose, Industrial
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810536-640389-2
Ultra Librarian 3D Model Ultra Librarian 640389-2 CAD Model

Description

This TE Connectivity AMP Connectors header is a through-hole, right-angle connector from TE Connectivity AMP Connectors with a friction lock fastening type.

  • Voltage Rating: 600VAC
  • Contact Material: Copper Alloy
  • Shrouding: Shrouded - 1 Wall
  • Contact Shape: Square
  • Contact Finish (Mating): Tin
  • Contact Finish (Post): Tin
  • Insulation Material: Thermoplastic, Glass-Filled
  • Flammability Rating: UL94 V-0
  • Contact Length (Mating): 0.400" (10.16mm)
  • Contact Length (Post): 0.125" (3.18mm)
  • Applications: General Purpose, Industrial
  • Temperature Range: -55°C to 105°C
