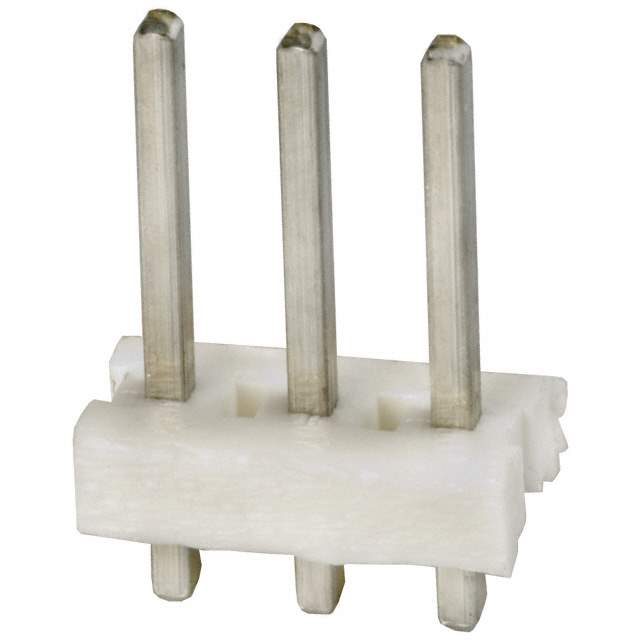

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Unshrouded
Mounting Style Through Hole
Termination Solder
Contact Length - Mating 0.400" (10.16mm)
Contact Length - Post 0.125" (3.18mm)
Overall Contact Length 0.650" (16.51mm)
Insulation Height 0.125" (3.18mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Glass Filled
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 600VAC
Applications General Purpose, Industrial
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807615-640383-3
Ultra Librarian 3D Model Ultra Librarian 640383-3 CAD Model

Description

The TE Connectivity AMP Connectors 640383-3 is a male pin header connector.

  • Positions: 3
  • Voltage Rating: 600VAC
  • Mounting: through-hole
  • Pitch-Mating: 0.156 inches
  • Contact Finish-Mating and Post: tin
  • Insulation Color: natural
  • Overall Contact Length: 0.650 inches
  • Contact Length-Mating: 0.400 inches
  • Operating Temperature Range: -55°C to 105°C
