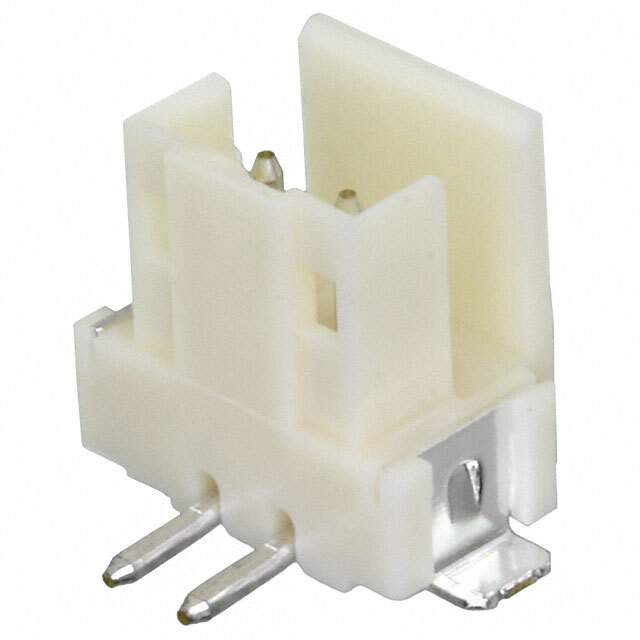

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series CT
Package Tape & Reel (TR),Cut Tape (CT)
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.177" (4.50mm)
Insulation Height 0.307" (7.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA6T), Nylon 6T, Glass Filled
Features Solder Retention
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 125VAC
Applications General Purpose
Base Product Number 292175
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names -292175-2-SI,A116246TR,A116246CT,-292175-2-LSI,292175-2-ND
Standard Package 700
Win Source Part Number 1228050-292175-2
Ultra Librarian 3D Model Ultra Librarian 292175-2 CAD Model

Description

The 1228050-292175-2 is a rectangular connector header with male pins manufactured by TE Connectivity AMP Connectors. The supply and demand status of this product is unlimited.

  • Supply and Demand Status: unlimited
  • Feature: Solder Retention
  • Positions: Can be loaded with all positions
  • Fastening Type: Detent Lock
  • Application: High Temperature, Low Power Consumption
