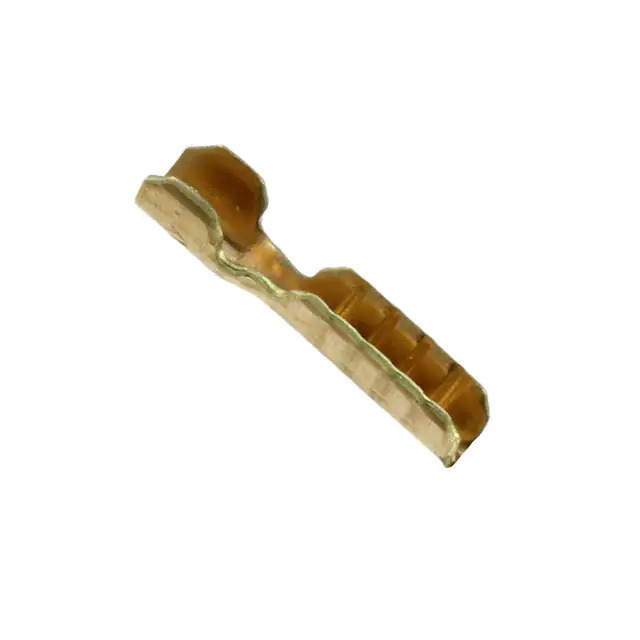

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Wire Splice Connectors
Mfr TE Connectivity AMP Connectors
Series -
Package Tape & Reel (TR)
Product Status Active
Terminal Type Crimpband, Open Band
Number of Wire Entries Varies by Wire Size
Termination Crimp
Wire Gauge 150-480 CMA
Insulation Non-Insulated
Features Ridged
Color -
Base Product Number 62382
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363264-62382-1
Ultra Librarian 3D Model Ultra Librarian 62382-1 CAD Model

Description

The TE Connectivity AMP Connectors 1363264-62382-1 is a wire splice connector.

  • Category: Connectors and Interconnects - Terminals - Wire to Board Connectors
  • Insulation: Non-Insulated
  • Termination: Crimp
  • Wire Gauge: 150-480 CMA
  • Feature: Ridged
  • Package: Tape and Reel
  • Status: Active
  • HTSUS: 8536.90.4000
  • ECCN: EAR99
