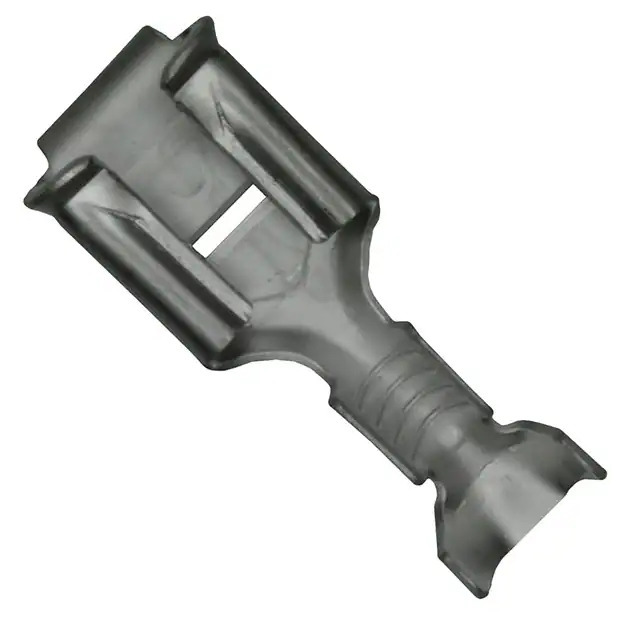

Same model may have multiple batches, images only for reference.
62109-2 TE Connectivity
Same model may have multiple batches, images only for reference.

62109-2

Part No 62109-2
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT/TAB 14-18AWG 0.250 / 0.250" (6.35mm) Quick Connect Female and Male 14-18 AWG Crimp Connector Non-Insulated
Datasheet
62109-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Stacked
Gender Female and Male
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.305" (7.75mm)
Length - Overall 0.780" (19.81mm)
Termination Crimp
Wire Gauge 14-18 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.120" ~ 0.170" (3.05mm ~ 4.32mm)
Base Product Number 62109
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364783-62109-2
Ultra Librarian 3D Model Ultra Librarian 62109-2 CAD Model

Description

The 1364783-62109-2 is a Quick Connect Terminal from TE Connectivity AMP Connectors.

  • Product Name: 1364783-62109-2
  • Manufacturer: TE Connectivity AMP Connectors
  • Series: Faston
  • Mounting: Free hanging (in-line)
  • Wire Gauge: 14-18 AWG
  • Contact Finish: Tin
  • Insulation: Non-insulated
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Overall Length: 0.780" (19.81mm)
  • Terminal Type: Female and male, stacked
  • Applications: Connectors and interconnects
  • Packaging: Tape & reel
  • Status: Active
