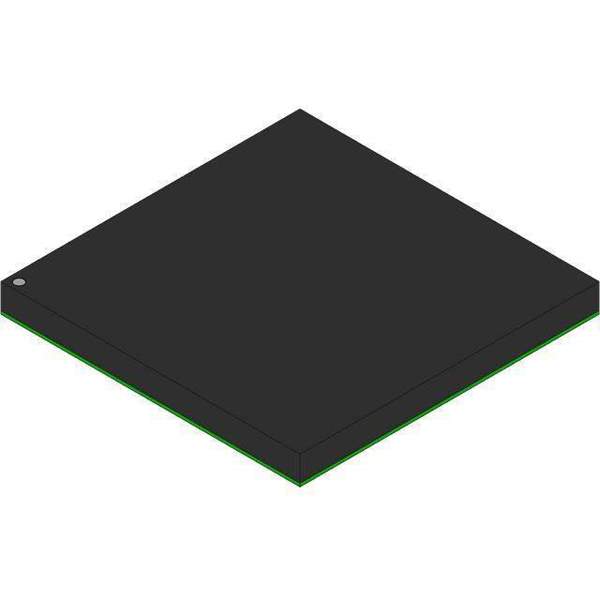

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features series Field Programmable Gate Array (FPGA) IC 726 3317184 32470 1020-BBGA
Manufacturer Intel
Series Stratix®
Package Tray
Part Status Obsolete
Number of I/O 726
Operating Temperature Range 0°C ~ 85°C (TJ)
Mounting Surface Mount
Package 1020-BBGA
Case / Package 1020-FBGA (33x33)
Family Name EP1S30
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A001A2A
HTSUS 8542.39.0001
Quantity per package 24
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 870484-EP1S30F1020C5
Ultra Librarian 3D Model Ultra Librarian EP1S30F1020C5 CAD Model

Description

The EP1S30F1020C5 is a field-programmable gate array (FPGA) from Intel's Stratix series.

  • I/Os: 726
  • Maximum Operating Temperature: 85°C
  • Package: 1020-BBGA
  • Mounting: Surface-mountable
  • Status: Obsolete
