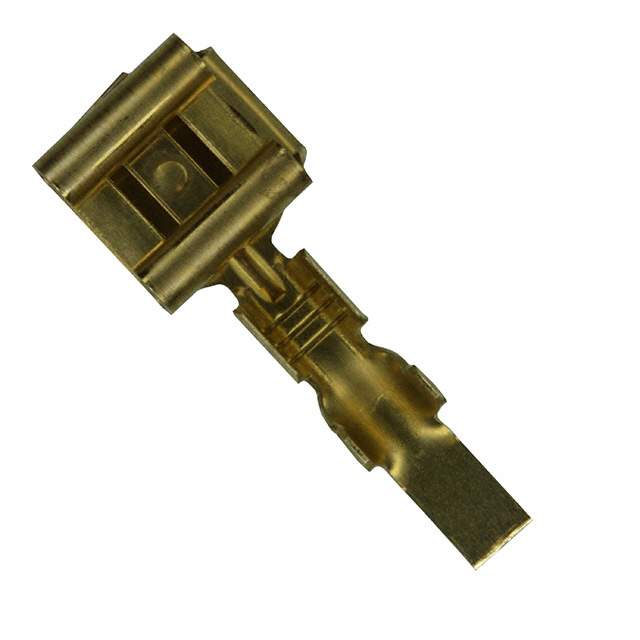

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR),Cut Tape (CT)
Terminal Type Angled - 90°, Flag
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.305" (7.75mm)
Termination Crimp
Wire Gauge 14-18 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line), Right Angle
Contact Material Brass
Insulation Diameter 0.090" ~ 0.130" (2.29mm ~ 3.30mm)
Base Product Number 62048
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names 2266-62048-1,A27675-ND,620481,A27675,A27675TR,A27675CT,62048-1-ND,-62048-1-SI
Standard Package 13,000
Win Source Part Number 1179511-62048-1
Ultra Librarian 3D Model Ultra Librarian 62048-1 CAD Model

Description

The 62048-1 electronic component is a terminal connector manufactured by TE Connectivity AMP Connectors.

  • Series: Faston
  • Function: Quick Connects and Disconnects
  • Terminal Type: Angled - 90°, Flag
  • Wire Gauge: 14-18 AWG
  • Standard Package: 13,000
  • Risk: Moderate Risk of Counterfeit Products in the Open Market
