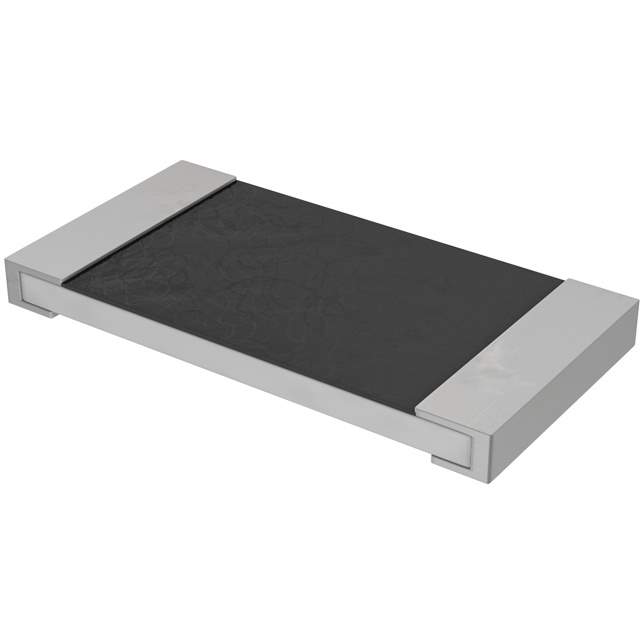

HVCB2512FDD20K0 Real Image
Same model may have multiple batches, images only for reference.

HVCB2512FDD20K0

Part No HVCB2512FDD20K0
Manufacturer Stackpole Electronics Inc.
Catalog Chip Resistor - Surface Mount
Description RES 20K OHM 1% 2W 2512 / 20 kOhms ±1% 2W Chip Resistor 2512 (6432 Metric) High Voltage, Moisture Resistant, Pulse Withstanding Thick Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series HVC
Package Tape & Reel (TR)
Resistance 20 kOhms
Tolerance ±1%
Power (Watts) 2W
Composition Thick Film
Features High Voltage, Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 150°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Dimension 0.250" L x 0.125" W (6.35mm x 3.18mm)
Height - Seated (Max) 0.030" (0.76mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Standard Package 500
Win Source Part Number 993759-HVCB2512FDD20K0
Ultra Librarian 3D Model Ultra Librarian HVCB2512FDD20K0 CAD Model

Description

The HVCB2512FDD20K0 is a high voltage, moisture resistant, pulse withstanding chip resistor, with a resistance of 20 kOhms and a tolerance of ±1%.

  • Resistance: 20 kOhms
  • Tolerance: ±1%
  • Power Rating: 2W
  • Temperature Coefficient: ±100ppm/°C
  • Technology: thick film
  • Terminations: 2
  • Package: 2512 (6432 Metric)
  • Height: 0.030" (0.76mm)
  • Operating Temperature Range: -55°C to 150°C
  • Series: HVC
  • Packaging: tape and reel
  • Standard Package: 500
  • Manufacturer: Stackpole Electronics Inc.
